CBR04C509C1GAC

CBR04C509C1GAC

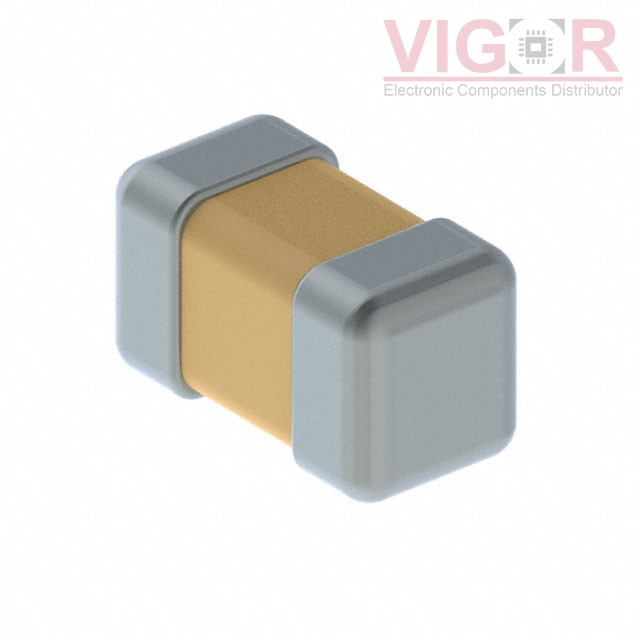

Image is for reference,
please contact us to get the real picture

Part No :

CBR04C509C1GAC

Manufacturer
KEMET
Description
CAP CER 5PF 100V NP0 0402
Catalog
Ceramic Capacitors
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
CBR04C509C1GAC PDF
Availability
0 pieces
Unit Price
$0.05948

Current price of CBR04C509C1GAC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CBR04C509C1GAC Specifications
Type Description
Series:CBR-SMD RF C0G
Package:Tape & Reel (TR)
Part Status:Active
Capacitance:5 pF
Tolerance:±0.25pF
Voltage - Rated:100V
Temperature Coefficient:C0G, NP0
Operating Temperature:-55°C ~ 125°C
Features:High Q, Low Loss, Ultra Low ESR
Ratings:-
Applications:RF, Microwave, High Frequency
Failure Rate:-
Mounting Type:Surface Mount, MLCC
Package / Case:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):-
Thickness (Max):0.022" (0.55mm)
Lead Spacing:-
Lead Style:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1812Y1000391FFT

1812Y1000391FFT

CAP CER 390PF 100V C0G/NP0 1812
HOT 1808Y0100122JXT

1808Y0100122JXT

CAP CER 1200PF 10V X7R 1808

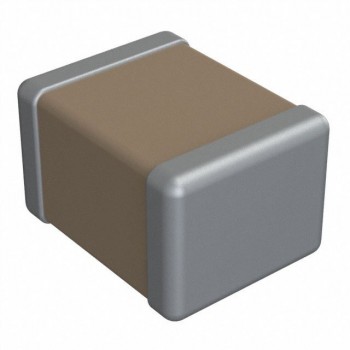

HOT 1210Y0630105KXR
