JAN4N24A

JAN4N24A

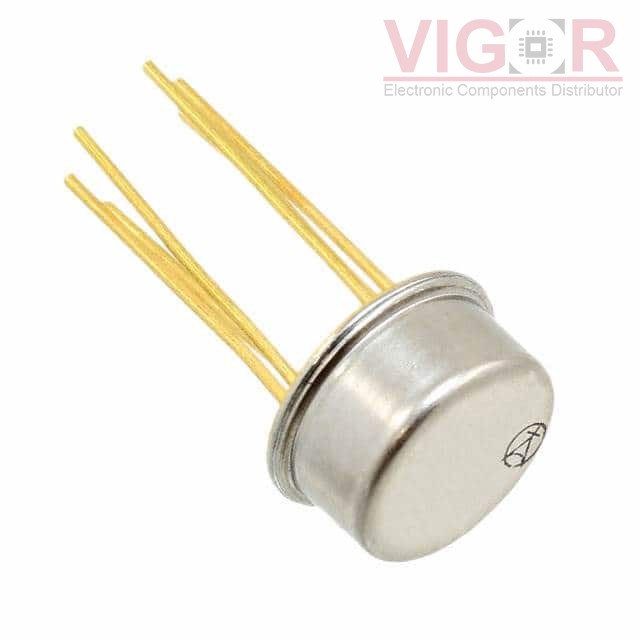

Image is for reference,
please contact us to get the real picture

Part No :

JAN4N24A

Manufacturer
TT Electronics / Optek Technology
Description
OPTOISO 1KV TRANS W/BASE TO78-6
Catalog
Optoisolators - Transistor, Photovoltaic Output
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
JAN4N24A PDF
Availability
2 pieces
Unit Price
$22.88000

Current price of JAN4N24A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JAN4N24A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Number of Channels:1
Voltage - Isolation:1000VDC
Current Transfer Ratio (Min):100% @ 10mA
Current Transfer Ratio (Max):-
Turn On / Turn Off Time (Typ):-
Rise / Fall Time (Typ):20µs, 20µs (Max)
Input Type:DC
Output Type:Transistor with Base
Voltage - Output (Max):40V
Current - Output / Channel:50mA
Voltage - Forward (Vf) (Typ):1.5V (Max)
Current - DC Forward (If) (Max):40 mA
Vce Saturation (Max):300mV
Operating Temperature:-55°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-78-6 Metal Can
Supplier Device Package:TO-78-6
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT H11D3SR2M

H11D3SR2M

OPTOISO 4.17KV TRANS W/BASE 6SMD

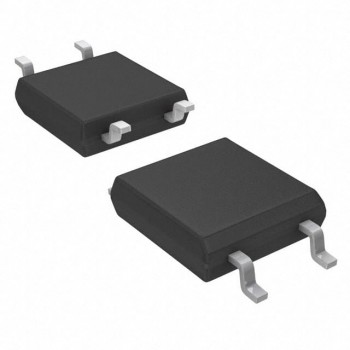

HOT SFH690BT3
