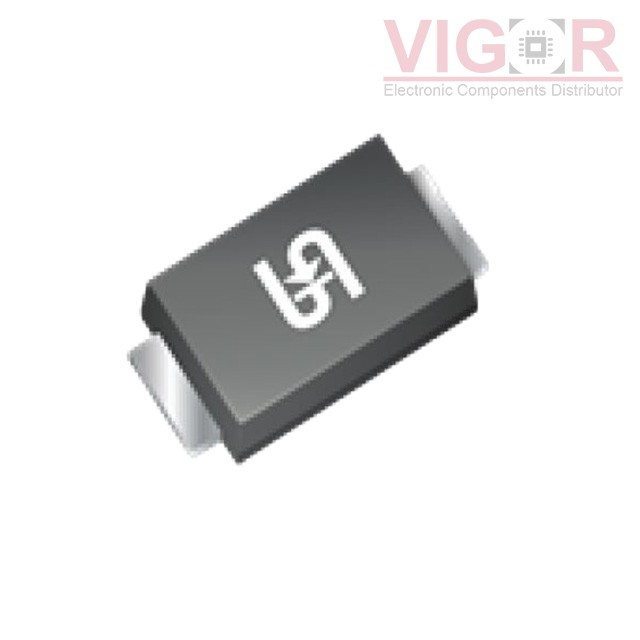

SMA6S22AH

SMA6S22AH

Image is for reference,
please contact us to get the real picture

Part No :

SMA6S22AH

Manufacturer
TSC (Taiwan Semiconductor)
Description
600W, 10V - 70V, SMD TVS PG STRU
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
SMA6S22AH PDF
Availability
0 pieces
Unit Price
$0.12388

Current price of SMA6S22AH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMA6S22AH Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.6V
Voltage - Clamping (Max) @ Ipp:35.7V
Current - Peak Pulse (10/1000µs):16.8A
Power - Peak Pulse:600W
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOD-128
Supplier Device Package:SOD-128
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT MA5KP70A

MA5KP70A

TVS DIODE 70V 113V DO204AR

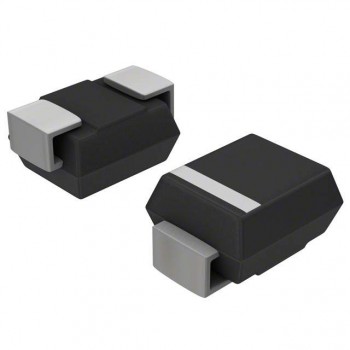

HOT SMAJ51ATR
