SMBJ22

SMBJ22

Image is for reference,
please contact us to get the real picture

Part No :

SMBJ22

Manufacturer
Meritek
Description
TVS DIODE 22V 39.4V DO-214AA (SM
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
SMBJ22 PDF
Availability
0 pieces
Unit Price
$0.10202

Current price of SMBJ22 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMBJ22 Specifications
Type Description
Series:SMBJ
Package:Tape & Reel (TR)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):22V
Voltage - Breakdown (Min):24.4V
Voltage - Clamping (Max) @ Ipp:39.4V
Current - Peak Pulse (10/1000µs):15.23A
Power - Peak Pulse:600W
Power Line Protection:-
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-55°C ~ 150°C
Mounting Type:Surface Mount
Package / Case:DO-214AA (SMB)
Supplier Device Package:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1.5SMC7.5CAHR7G

1.5SMC7.5CAHR7G

TVS DIODE 6.4V 11.3V DO214AB
HOT P6SMB39AT3G

P6SMB39AT3G

TVS, 600W, 33.3V UNIDIRECTIONAL

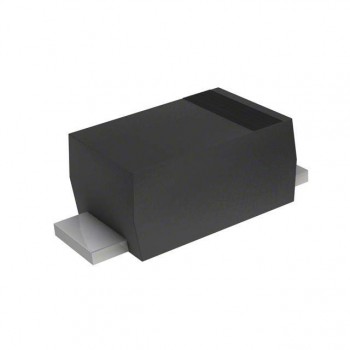

HOT TV02W900-G
