TPSMC20AHE3/9AT

TPSMC20AHE3/9AT

Image is for reference,
please contact us to get the real picture

Part No :

TPSMC20AHE3/9AT

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 17.1V 27.7V DO214AB
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
TPSMC20AHE3/9AT PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of TPSMC20AHE3/9AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPSMC20AHE3/9AT Specifications
Type Description
Series:Automotive, AEC-Q101, PAR®
Package:Tape & Reel (TR)
Part Status:Obsolete
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):17.1V
Voltage - Breakdown (Min):19V
Voltage - Clamping (Max) @ Ipp:27.7V
Current - Peak Pulse (10/1000µs):54.2A
Power - Peak Pulse:1500W (1.5kW)
Power Line Protection:No
Applications:Automotive
Capacitance @ Frequency:-
Operating Temperature:-65°C ~ 185°C (TJ)
Mounting Type:Surface Mount
Package / Case:DO-214AB, SMC
Supplier Device Package:DO-214AB (SMCJ)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT BZW06-299 B0G

BZW06-299 B0G

TVS DIODE 299V 618V DO204AC
HOT SMAJ20HE3/5A

SMAJ20HE3/5A

TVS DIODE 20V 35.8V DO214AC

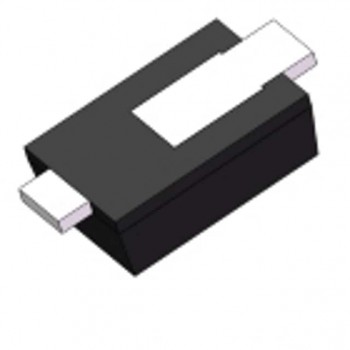

HOT SZM4F70A
