0761701020

0761701020

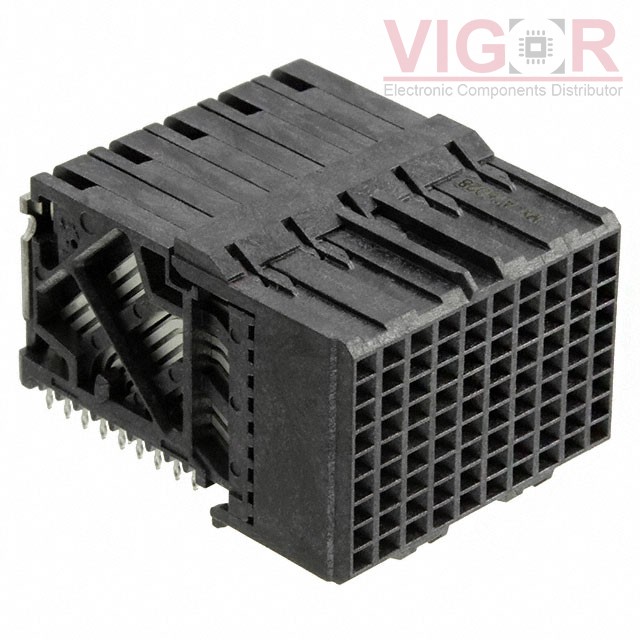

Image is for reference,
please contact us to get the real picture

Part No :

0761701020

Manufacturer
Woodhead - Molex
Description
CONN RCPT IMPACT 90POS EDGE MNT
Catalog
Backplane Connectors - Specialized
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
0761701020 PDF
Availability
1673 pieces
Unit Price
$11.55000

Current price of 0761701020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0761701020 Specifications
Type Description
Series:Impact 76170
Package:Tray
Part Status:Active
Connector Usage:-
Connector Type:Receptacle, Female Sockets
Connector Style:Impact
Number of Positions:90
Number of Positions Loaded:All
Pitch:-
Number of Rows:9
Number of Columns:10
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Press-Fit
Contact Layout, Typical:30 Differential Pairs
Features:-
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Black
