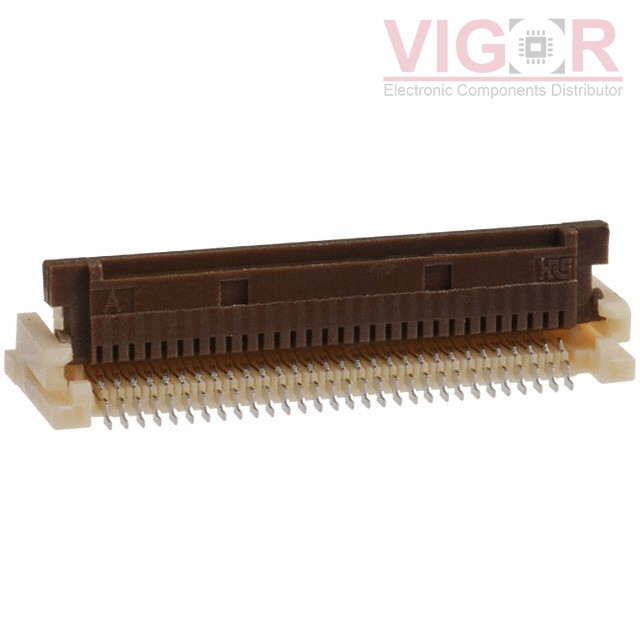

FH16-60S-0.3SHW

FH16-60S-0.3SHW

Image is for reference,
please contact us to get the real picture

Part No :

FH16-60S-0.3SHW

Manufacturer
Hirose
Description
CONN FPC BOTTOM 60POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
FH16-60S-0.3SHW PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of FH16-60S-0.3SHW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH16-60S-0.3SHW Specifications
Type Description
Series:FH16
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:60
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.118" (3.00mm)
Locking Feature:Flip Lock
Cable End Type:Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Tin-Lead
Housing Material:Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Pick and Place Cap, Zero Insertion Force (ZIF)
Voltage Rating:30V
Operating Temperature:-40°C ~ 70°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

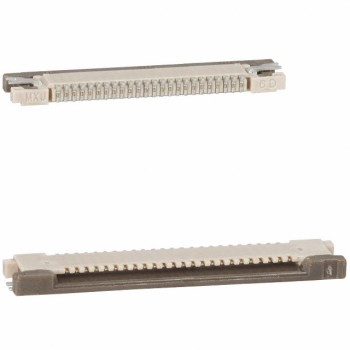

HOT 0545502419

0545502419

CONN FFC TOP 24POS 0.50MM R/A

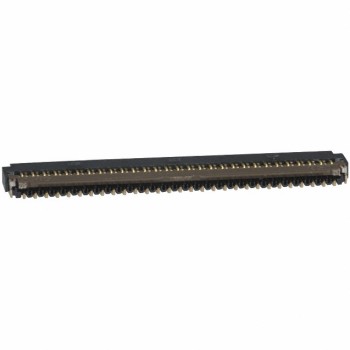

HOT FH26-57S-0.3SHW(05)
