1534238-1

1534238-1

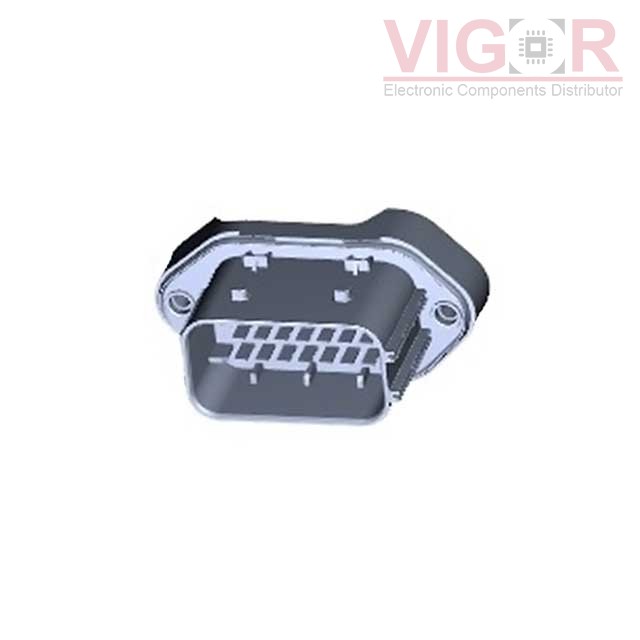

Image is for reference,
please contact us to get the real picture

Part No :

1534238-1

Manufacturer
Description
CONN HEADER VERT 21POS 5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
1534238-1 PDF
Availability
0 pieces
Unit Price
$29.71371

Current price of 1534238-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1534238-1 Specifications
Type Description
Series:LEAVYSEAL
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.197" (5.00mm)
Number of Positions:21
Number of Rows:3
Row Spacing - Mating:0.217" (5.51mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.183" (4.65mm)
Overall Contact Length:-
Insulation Height:1.738" (44.15mm)
Contact Shape:Rectangular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide, Mating Flange
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
