0194270012

0194270012

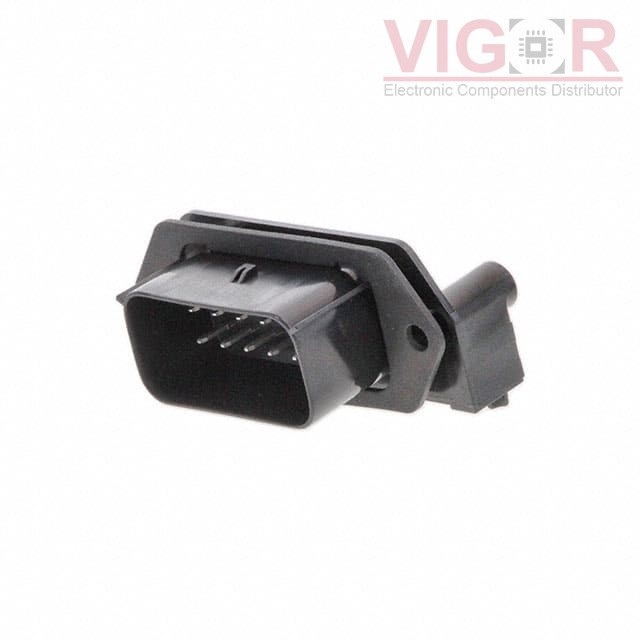

Image is for reference,
please contact us to get the real picture

Part No :

0194270012

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 12POS 5.84MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
0194270012 PDF
Availability
0 pieces
Unit Price
$8.83000

Current price of 0194270012 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0194270012 Specifications
Type Description
Series:MX150L 19427
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.230" (5.84mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.230" (5.84mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Panel Mount, Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:1.247" (31.67mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide, Mounting Flange
Operating Temperature:-
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
