1318745-2

1318745-2

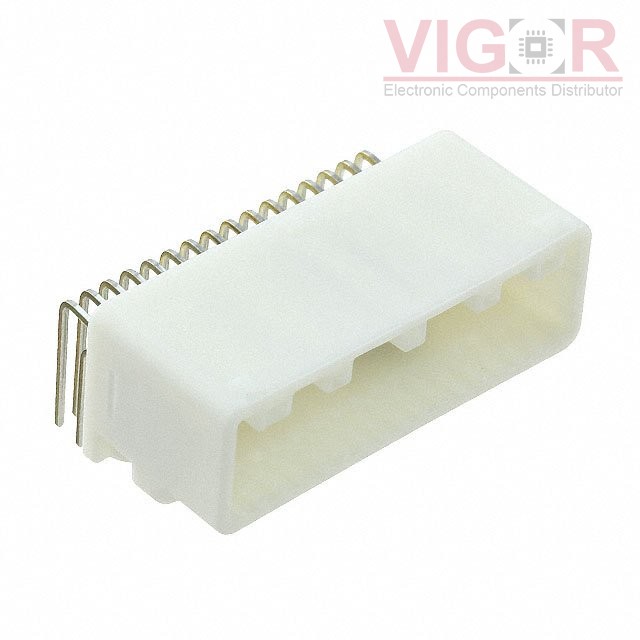

Image is for reference,
please contact us to get the real picture

Part No :

1318745-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 32POS 2.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
1318745-2 PDF
Availability
1545 pieces
Unit Price
$6.29000

Current price of 1318745-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1318745-2 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.087" (2.20mm)
Number of Positions:32
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.217" (5.50mm)
Contact Length - Post:0.157" (4.00mm)
Overall Contact Length:-
Insulation Height:0.610" (15.49mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Mounting Flange
Operating Temperature:-30°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 HB
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:12VDC
