30CPQ030

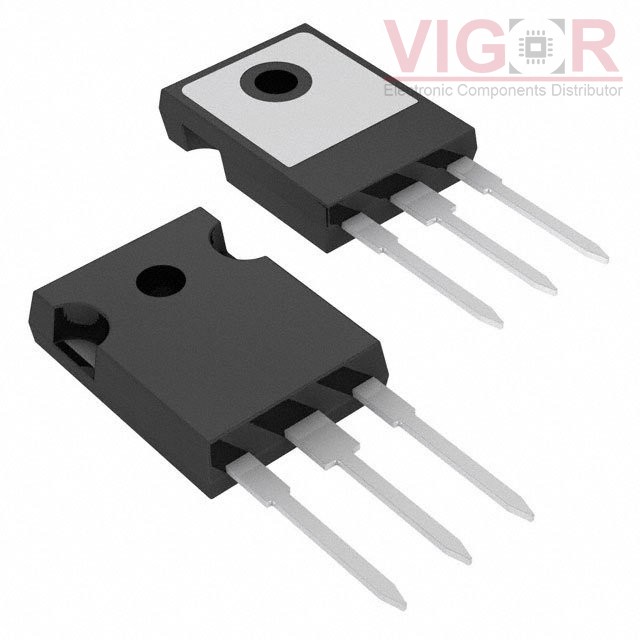

Image is for reference,
please contact us to get the real picture

Part No :: 30CPQ030

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: DIODE ARRAY SCHOTTKY 30V TO247AC

Catalog: Diodes - Rectifiers - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: 30CPQ030 PDF

Availability: 0 pieces

Unit Price: ~~$2.01200~~

Current price of 30CPQ030 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

30CPQ030 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Diode Configuration:	1 Pair Common Cathode
Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io) (per Diode):	15A
Voltage - Forward (Vf) (Max) @ If:	540 mV @ 15 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1.75 mA @ 30 V
Operating Temperature - Junction:	-55°C ~ 150°C
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AC

Please confirm the specifications of the products when ordering.
