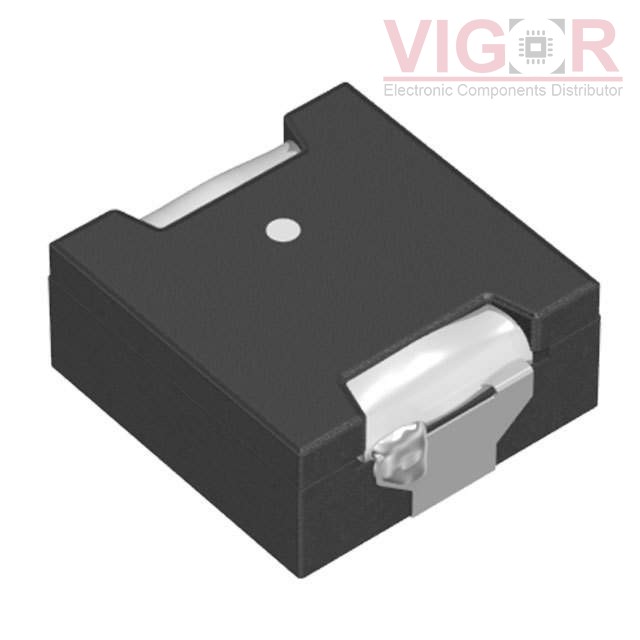

RLF12560T-1R9N120

RLF12560T-1R9N120

Image is for reference,
please contact us to get the real picture

Part No :

RLF12560T-1R9N120

Manufacturer
TDK Corporation
Description
FIXED IND 1.9UH 12.7A 3.6 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
RLF12560T-1R9N120 PDF
Availability
1496 pieces
Unit Price
$2.44000

Current price of RLF12560T-1R9N120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RLF12560T-1R9N120 Specifications
Type Description
Series:RLF
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
Type:Wirewound
Material - Core:Ferrite
Inductance:1.9 µH
Tolerance:±30%
Current Rating (Amps):12.7 A
Current - Saturation (Isat):15.6A
Shielding:Shielded
DC Resistance (DCR):3.6mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.504" L x 0.492" W (12.80mm x 12.50mm)
Height - Seated (Max):0.236" (6.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CBC2016T2R2M

CBC2016T2R2M

FIXED IND 2.2UH 720MA 260 MOHM

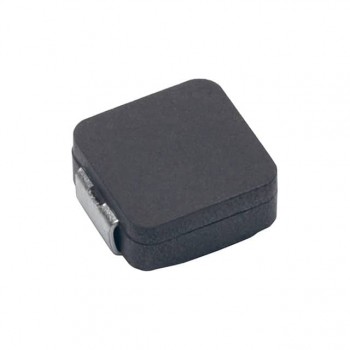

HOT MPX1D0630L6R8

MPX1D0630L6R8

FIXED IND 6.8UH 5.2A 50.9 MOHM

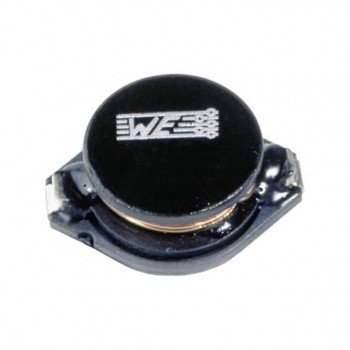

HOT 74456347
