1812-564F

Image is for reference,
please contact us to get the real picture

Part No :: 1812-564F

Manufacturer: API Delevan

Description: FIXED IND 560UH 82MA 30 OHM SMD

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: 1812-564F PDF

Availability: 0 pieces

Unit Price: ~~$4.47175~~

Current price of 1812-564F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1812-564F Specifications

Type	Description
Series:	1812
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	-
Material - Core:	Ferrite
Inductance:	560 µH
Tolerance:	±1%
Current Rating (Amps):	82 mA
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	30Ohm Max
Q @ Freq:	30 @ 790kHz
Frequency - Self Resonant:	3MHz
Ratings:	-
Operating Temperature:	-55°C ~ 125°C
Inductance Frequency - Test:	790 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	2-SMD
Supplier Device Package:	-
Size / Dimension:	0.126" L x 0.126" W (3.20mm x 3.20mm)
Height - Seated (Max):	0.190" (4.83mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

LB2016T2R2M

FIXED IND 2.2UH 375MA 130 MOHM

HOT

744912212

FIXED IND 120NH 1.5A 17.3 MOHM

HOT

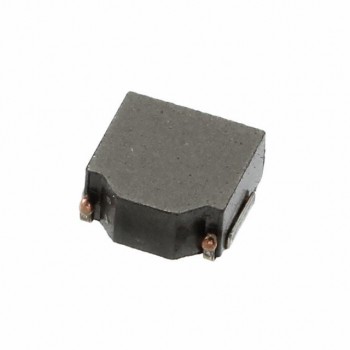

SPM4020T-4R7M
