NLFV25T-2R2M-EF

NLFV25T-2R2M-EF

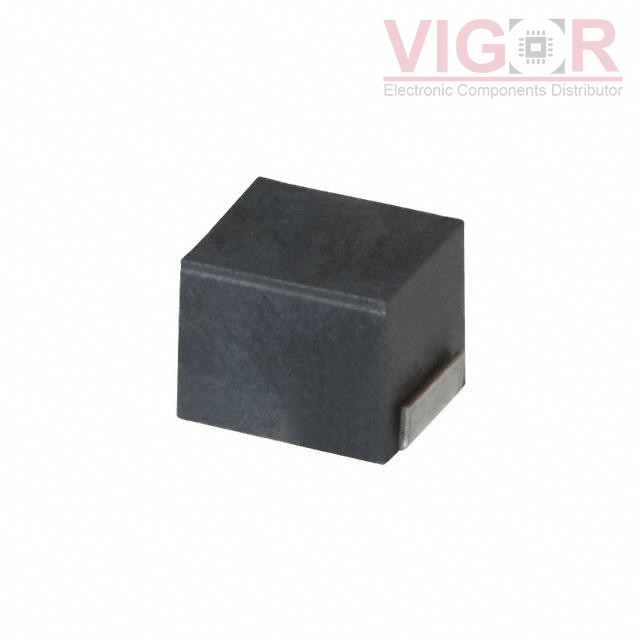

Image is for reference,
please contact us to get the real picture

Part No :

NLFV25T-2R2M-EF

Manufacturer
TDK Corporation
Description
FIXED IND 2.2UH 315MA 120 MOHM
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
NLFV25T-2R2M-EF PDF
Availability
975 pieces
Unit Price
$0.27000

Current price of NLFV25T-2R2M-EF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NLFV25T-2R2M-EF Specifications
Type Description
Series:NLFV
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Wirewound
Material - Core:Ferrite
Inductance:2.2 µH
Tolerance:±20%
Current Rating (Amps):315 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):120mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 105°C
Inductance Frequency - Test:7.96 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max):0.075" (1.90mm)
