TSL0709RA-2R2M3R7-PF

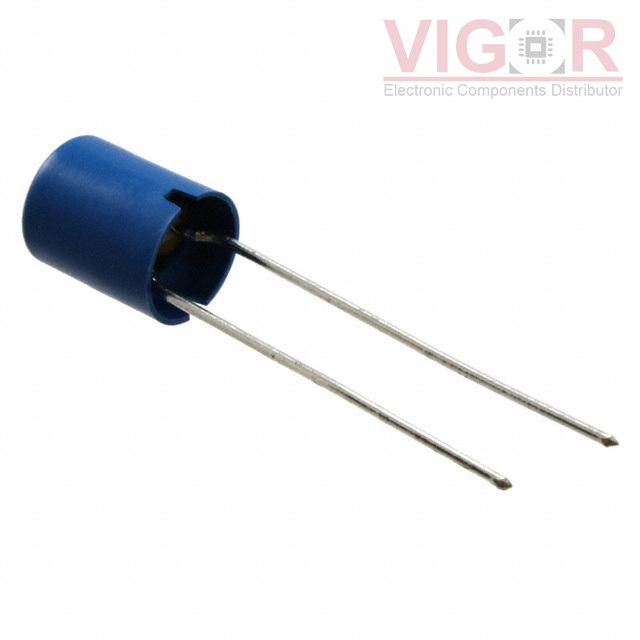

Image is for reference,
please contact us to get the real picture

Part No :: TSL0709RA-2R2M3R7-PF

Manufacturer: TDK Corporation

Description: FIXED IND 2.2UH 3.7A 11 MOHM TH

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: TSL0709RA-2R2M3R7-PF PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of TSL0709RA-2R2M3R7-PF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TSL0709RA-2R2M3R7-PF Specifications

Type	Description
Series:	TSL
Package:	Cut Tape (CT)Tape & Box (TB)
Part Status:	Obsolete
Type:	-
Material - Core:	-
Inductance:	2.2 µH
Tolerance:	±20%
Current Rating (Amps):	3.7 A
Current - Saturation (Isat):	4A
Shielding:	Unshielded
DC Resistance (DCR):	11mOhm Max
Q @ Freq:	10 @ 7.96MHz
Frequency - Self Resonant:	45MHz
Ratings:	-
Operating Temperature:	-20°C ~ 85°C
Inductance Frequency - Test:	1 kHz
Features:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Vertical Cylinder
Supplier Device Package:	-
Size / Dimension:	0.303" Dia (7.70mm)
Height - Seated (Max):	0.378" (9.60mm)
