760308104113

760308104113

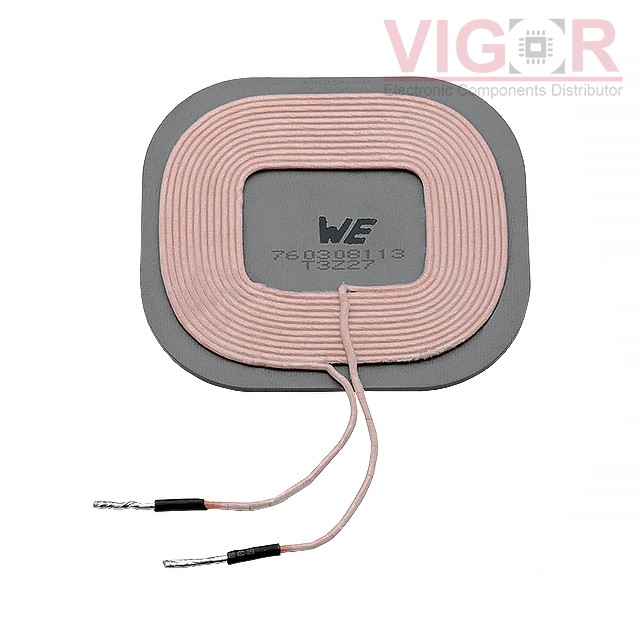

Image is for reference,
please contact us to get the real picture

Part No :

760308104113

Manufacturer
Würth Elektronik Midcom
Description
TX 1 COIL 1 LAYER 12UH 7A
Catalog
Wireless Charging Coils
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
760308104113 PDF
Availability
47 pieces
Unit Price
$15.29000

Current price of 760308104113 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

760308104113 Specifications
Type Description
Series:WE-WPCC
Package:Tray
Part Status:Active
Function:Transmitter
Type:1 Coil, 1 Layer
Inductance:12µH
Tolerance:±10%
DC Resistance (DCR):72mOhm Max
Q @ Freq:120 @ 125kHz
Current Rating (Amps):7A
Current - Saturation (Isat):12A
Frequency - Self Resonant:16MHz
Operating Temperature:-20°C ~ 105°C
Size / Dimension:2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm)
