BTS7810KNTMA1

BTS7810KNTMA1

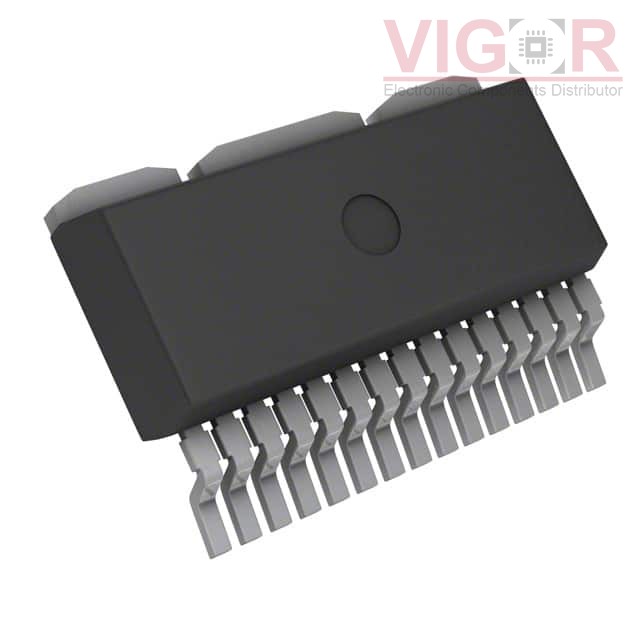

Image is for reference,
please contact us to get the real picture

Part No :

BTS7810KNTMA1

Manufacturer
IR (Infineon Technologies)
Description
IC BRIDGE DRIVER PAR TO263-15
Catalog
PMIC - Full, Half-Bridge Drivers
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
BTS7810KNTMA1 PDF
Availability
4929 pieces
Unit Price
$0.00000

Current price of BTS7810KNTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTS7810KNTMA1 Specifications
Type Description
Series:TrilithIC™
Package:Tape & Reel (TR)
Part Status:Obsolete
Output Configuration:Half Bridge (2)
Applications:DC Motors, General Purpose
Interface:Logic
Load Type:Inductive
Technology:DMOS
Rds On (Typ):14mOhm LS, 26mOhm HS
Current - Output / Channel:-
Current - Peak Output:42A
Voltage - Supply:1.8V ~ 42V
Voltage - Load:1.8V ~ 42V
Operating Temperature:-40°C ~ 150°C (TJ)
Features:Status Flag
Fault Protection:Open Load Detect, Over Temperature, Short Circuit, UVLO
Mounting Type:Surface Mount
Package / Case:TO-263-18 (15 Leads + 3 Tabs)
Supplier Device Package:P-TO263-15-1
