MC33186VW1

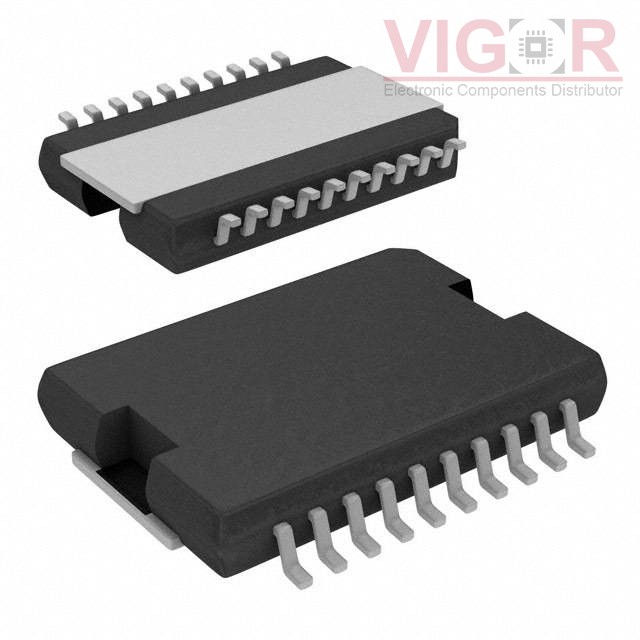

Image is for reference,
please contact us to get the real picture

Part No :: MC33186VW1

Manufacturer: NXP Semiconductors

Description: IC MOTOR DRIVER PAR 20HSOP

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: MC33186VW1 PDF

Availability: 3596 pieces

Unit Price: ~~$0.00000~~

Current price of MC33186VW1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MC33186VW1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge (2)
Applications:	DC Motors, General Purpose, Solenoids
Interface:	Logic
Load Type:	Inductive
Technology:	Bi-CMOS
Rds On (Typ):	150mOhm
Current - Output / Channel:	5A
Current - Peak Output:	-
Voltage - Supply:	5V ~ 28V
Voltage - Load:	5V ~ 28V
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Status Flag
Fault Protection:	Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type:	Surface Mount
Package / Case:	20-SOIC (0.433", 11.00mm Width) Exposed Pad
Supplier Device Package:	20-HSOP

Please confirm the specifications of the products when ordering.
