IRSM506-076DA

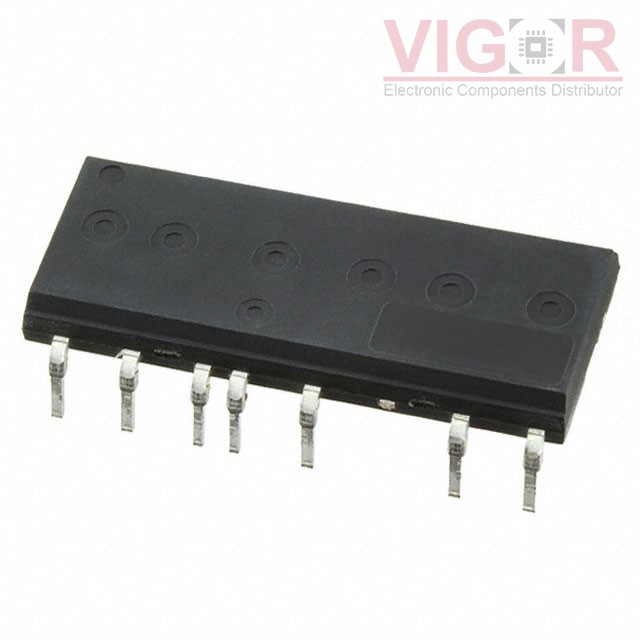

Image is for reference,
please contact us to get the real picture

Part No :: IRSM506-076DA

Manufacturer: IR (Infineon Technologies)

Description: IC MICRO MCM DRIVER 23DIP

Catalog: PMIC - Full, Half-Bridge Drivers

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: IRSM506-076DA PDF

Availability: 200 pieces

Unit Price: ~~$0.00000~~

Current price of IRSM506-076DA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRSM506-076DA Specifications

Type	Description
Series:	µIPM™-DIP
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Half Bridge (3)
Applications:	AC Motors
Interface:	Logic
Load Type:	Inductive
Technology:	IGBT
Rds On (Typ):	-
Current - Output / Channel:	4A
Current - Peak Output:	15A
Voltage - Supply:	13.5V ~ 16.5V
Voltage - Load:	480V (Max)
Operating Temperature:	-40°C ~ 150°C (TJ)
Features:	Bootstrap Circuit
Fault Protection:	UVLO
Mounting Type:	Through Hole
Package / Case:	23-PowerDIP Module (0.551", 14.00mm)
Supplier Device Package:	23-DIP
