ILD223T

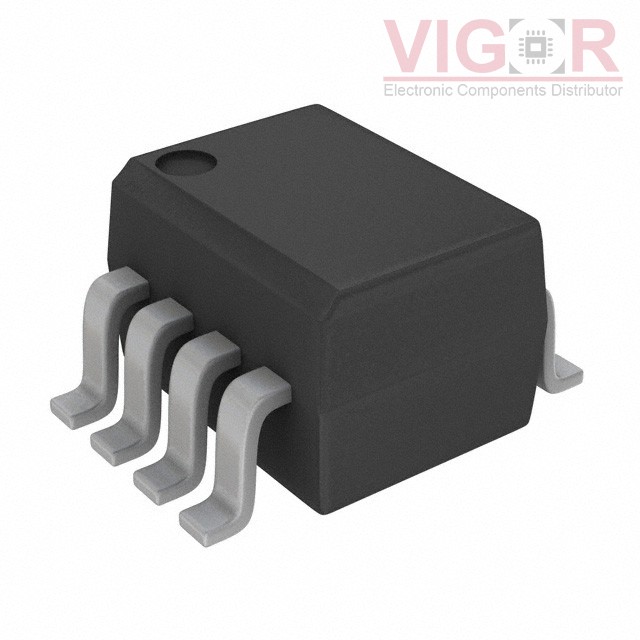

Image is for reference,
please contact us to get the real picture

Part No :: ILD223T

Manufacturer: Vishay / Semiconductor - Opto Division

Description: OPTOISO 4KV 2CH DARLINGTON 8SOIC

Catalog: Optoisolators - Transistor, Photovoltaic Output

Shipped from: HK warehouse

Expected Shipping Date: Jul 24 - Jul 28 2025

DataSheet: ILD223T PDF

Availability: 4706 pieces

Unit Price: ~~$1.71000~~

Current price of ILD223T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ILD223T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Number of Channels:	2
Voltage - Isolation:	4000Vrms
Current Transfer Ratio (Min):	500% @ 1mA
Current Transfer Ratio (Max):	-
Turn On / Turn Off Time (Typ):	15µs, 30µs (Min)
Rise / Fall Time (Typ):	-
Input Type:	DC
Output Type:	Darlington
Voltage - Output (Max):	30V
Current - Output / Channel:	-
Voltage - Forward (Vf) (Typ):	1.3V (Max)
Current - DC Forward (If) (Max):	-
Vce Saturation (Max):	1V
Operating Temperature:	-55°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
