CHM-14-35-90-36-AC00-F2-2

Image is for reference,
please contact us to get the real picture

Part No :

CHM-14-35-90-36-AC00-F2-2

Manufacturer
Luminus Devices
Description
LED COB CHM14 WARM WHITE SQUARE
Catalog
LED Lighting - COBs, Engines, Modules, Strips
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
CHM-14-35-90-36-AC00-F2-2 PDF
Availability
0 pieces
Unit Price
$6.18930

Current price of CHM-14-35-90-36-AC00-F2-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:CHM-14
Package:Tray
Part Status:Active
Type:Chip On Board (COB)
Color:White, Warm
CCT (K):3500K 2-Step MacAdam Ellipse
Wavelength:-
Configuration:Square
Luminous Flux @ Current/Temperature:2495lm (Typ)
Current - Test:720mA
Temperature - Test:85°C
Voltage - Forward (Vf) (Typ):35V
Lumens/Watt @ Current - Test:99 lm/W
Current - Max:1.44A
CRI (Color Rendering Index):90
Viewing Angle:120°
Features:-
Size / Dimension:19.00mm L x 19.00mm W
Height:1.37mm
Light Emitting Surface (LES):13.50mm Dia
Lens Type:Flat
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

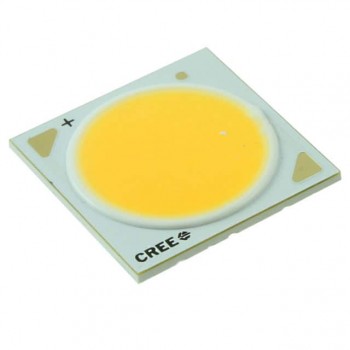

HOT CXA2520-0000-000N00R450H

CXA2520-0000-000N00R450H

LED ARRAY XLAMP CXA2520 19MM WHT

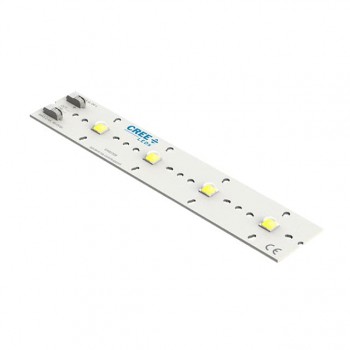

HOT XHP70A-0L-04-0D0HN250G
