DLC03A-05

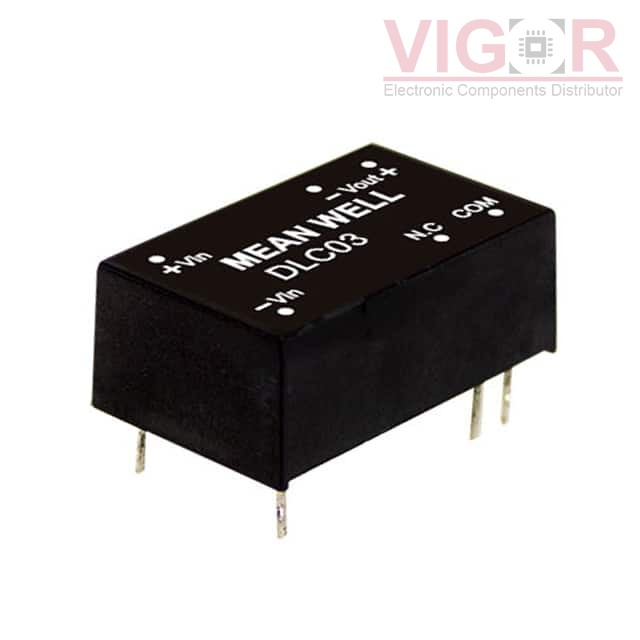

Image is for reference,
please contact us to get the real picture

Part No :: DLC03A-05

Manufacturer: MEAN WELL

Description: DC DC CONVERTER +/-5V 3W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 20 - Jul 24 2025

DataSheet: DLC03A-05 PDF

Availability: 1840 pieces

Unit Price: ~~$10.53000~~

Current price of DLC03A-05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DLC03A-05 Specifications

Type	Description
Series:	DLC03 (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	300mA, 300mA
Power (Watts):	3 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	16-DIP Module, 6 Leads
Size / Dimension:	0.87" L x 0.54" W x 0.34" H (22.1mm x 13.8mm x 8.6mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
