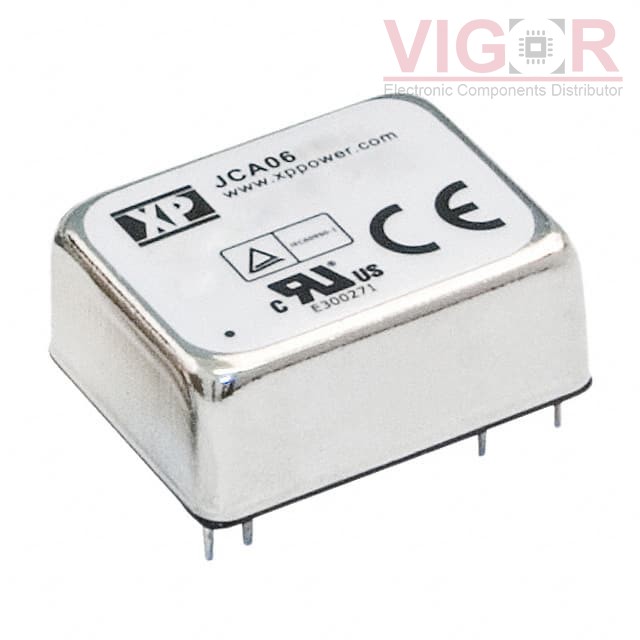

JCA0624D02

Image is for reference,
please contact us to get the real picture

Part No :: JCA0624D02

Manufacturer: XP Power

Description: DC DC CONVERTER +/-12V 6W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Jul 21 - Jul 25 2025

DataSheet: JCA0624D02 PDF

Availability: 1259 pieces

Unit Price: ~~$32.40000~~

Current price of JCA0624D02 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JCA0624D02 Specifications

Type	Description
Series:	JCA (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	250mA, 250mA
Power (Watts):	6 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

REC5-1205DRW/H4/C/SMD

DC DC CONVERTER +/-5V 5W

HOT

VI-231-EW-F1

DC DC CONVERTER 12V 100W

HOT

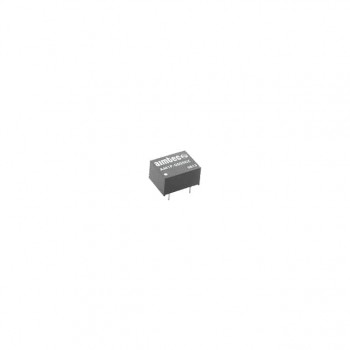

AM1P-2409DZ
