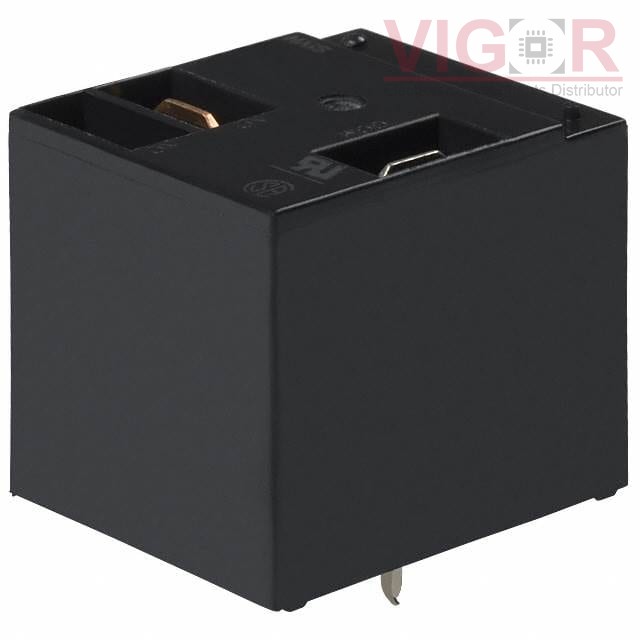

JTN1S-TMP-F-DC9V

JTN1S-TMP-F-DC9V

Image is for reference,
please contact us to get the real picture

Part No :

JTN1S-TMP-F-DC9V

Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPDT 20A 9V
Catalog
Power Relays, Over 2 Amps
Shipped from
HK warehouse
Expected Shipping Date
Aug 09 - Aug 13 2025
DataSheet
JTN1S-TMP-F-DC9V PDF
Availability
38 pieces
Unit Price
$4.54000

Current price of JTN1S-TMP-F-DC9V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JTN1S-TMP-F-DC9V Specifications
Type Description
Series:JT-N
Package:Bulk
Part Status:Not For New Designs
Mounting Type:Through Hole
Coil Voltage:9VDC
Contact Form:SPDT (1 Form C)
Contact Rating (Current):20 A
Switching Voltage:277VAC - Max
Coil Current:88.9 mA
Coil Type:Non Latching
Features:-
Termination Style:PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating:Sealed - Fully
Coil Insulation:Class F
Must Operate Voltage:6.75 VDC
Must Release Voltage:0.9 VDC
Operate Time:20 ms
Release Time:10 ms
Operating Temperature:-55°C ~ 85°C
Contact Material:Silver Tin Oxide (AgSnO)
Relay Type:General Purpose
