TNPW080569R8DHTA

Image is for reference,
please contact us to get the real picture

Part No :: TNPW080569R8DHTA

Manufacturer: Vishay / Dale

Description: RES 69.8 OHM 0.5% 1/8W 0805

Catalog: Chip Resistors-Surface Mount

Shipped from: HK warehouse

Expected Shipping Date: Jul 22 - Jul 26 2025

DataSheet: TNPW080569R8DHTA PDF

Availability: 0 pieces

Unit Price: ~~$0.06750~~

Current price of TNPW080569R8DHTA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TNPW080569R8DHTA Specifications

Type	Description
Series:	TNPW
Package:	Tape & Reel (TR)
Part Status:	Active
Resistance:	69.8 Ohms
Tolerance:	±0.5%
Power (Watts):	0.125W, 1/8W
Composition:	Thin Film
Features:	Military
Temperature Coefficient:	±50ppm/°C
Operating Temperature:	-55°C ~ 125°C
Package / Case:	0805 (2012 Metric)
Supplier Device Package:	0805
Ratings:	-
Size / Dimension:	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max):	0.022" (0.55mm)
Number of Terminations:	2
Failure Rate:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

KTR18EZPF1005

RES SMD 10M OHM 1% 1/4W 1206

HOT

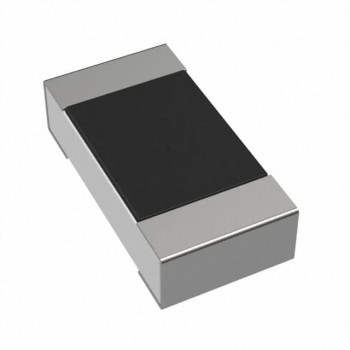

RN73H1JTTD8452D50

RES 84.5K OHM 0.5% 1/10W 0603

HOT

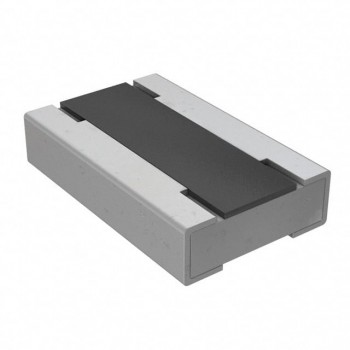

RCL040633K0JNEA
