TDP08H1SBD1R

TDP08H1SBD1R

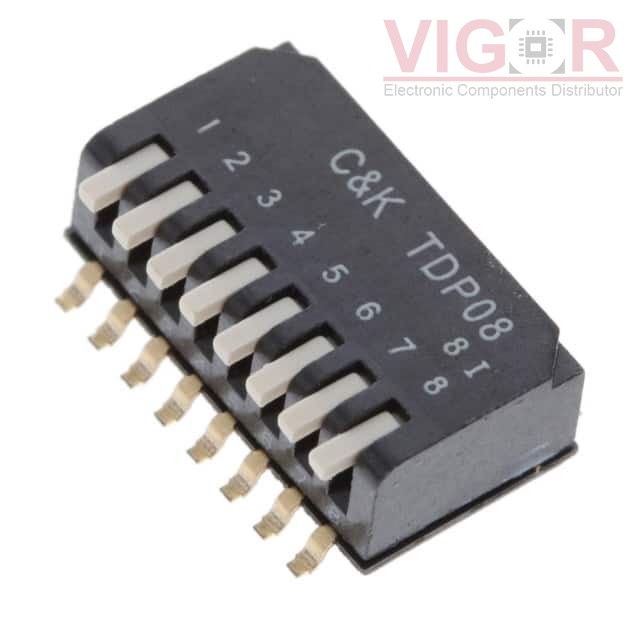

Image is for reference,
please contact us to get the real picture

Part No :

TDP08H1SBD1R

Manufacturer
C&K
Description
SWITCH PIANO DIP SPST 25MA 24V
Catalog
DIP Switches
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
TDP08H1SBD1R PDF
Availability
834 pieces
Unit Price
$3.77000

Current price of TDP08H1SBD1R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TDP08H1SBD1R Specifications
Type Description
Series:TDP
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Circuit:SPST
Number of Positions:8
Current Rating (Amps):25mA
Voltage Rating:24VDC
Actuator Type:Piano
Actuator Level:Raised
Contact Material:Copper Alloy
Contact Finish:Gold
Height Above Board:0.161" (4.10mm)
Mounting Type:Surface Mount, Right Angle
Termination Style:Gull Wing
Pitch:0.050" (1.27mm), Half
Washable:No
Features:-
Operating Temperature:-40°C ~ 85°C
