TL3253BRNBRNF160Q

TL3253BRNBRNF160Q

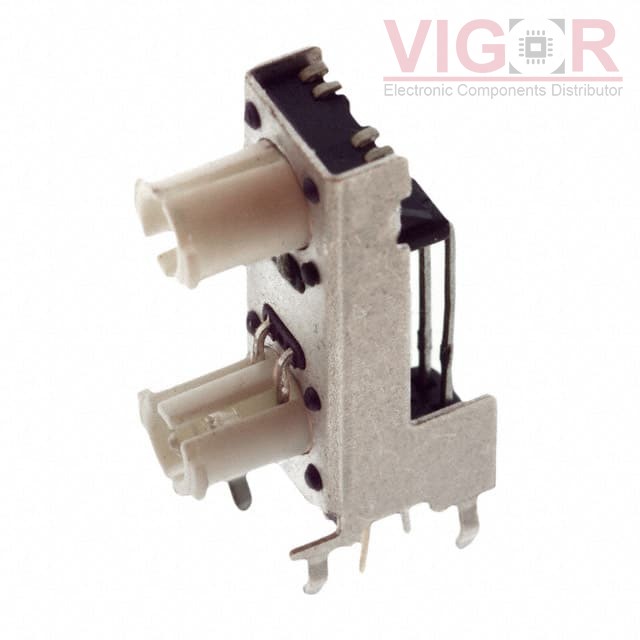

Image is for reference,
please contact us to get the real picture

Part No :

TL3253BRNBRNF160Q

Manufacturer
E-Switch
Description
SWITCH TACTILE SPSTX2 0.05A 12V
Catalog
Tactile Switches
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
TL3253BRNBRNF160Q PDF
Availability
0 pieces
Unit Price
$2.99478

Current price of TL3253BRNBRNF160Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TL3253BRNBRNF160Q Specifications
Type Description
Series:TL3253
Package:Bulk
Part Status:Active
Circuit:SPST x 2
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 12VDC
Actuator Type:Dual
Mounting Type:Through Hole, Right Angle
Actuator Height off PCB, Vertical:-
Actuator Length, Right Angle:8.55mm
Actuator Orientation:Side Actuated
Termination Style:PC Pin
Outline:8.40mm x 10.50mm
Illumination:Illuminated
Illumination Type, Color:LED, Red
Illumination Voltage (Nominal):1.95 VDC
Operating Force:160gf
Ingress Protection:-
Features:-
Operating Temperature:-20°C ~ 70°C
