Overview of the V300A24C500BG
The V300A24C500BG belongs to Vicor's MegaMod family, a series of DC-DC converters engineered for applications that require high power density and reliability. This module is specifically designed to convert a high-voltage DC input (300V) into a regulated 24V DC output, delivering up to 500 watts of continuous power.
Key Specifications:
-
Input Voltage (Nominal): 300V DC
-
Output Voltage: 24V DC
-
Output Power: 500W
-
Input Power Capability: 571W
-
Efficiency: Typically over 85%
-
Package: Half-brick
-
Cooling: Baseplate-cooled for conduction or forced-air applications
-
Certifications: CE, UL Recognized, RoHS-compliant
Design & Construction
The V300A24C500BG features a robust half-brick package with gold-plated pin terminals, offering reliable electrical connectivity and mechanical stability. The unit is built with an integrated metal baseplate, allowing efficient heat transfer to external heatsinks or cooling plates — ideal for environments where space is limited but thermal performance cannot be compromised.
The module also includes PR (primary) and PC (primary control) pins for control interfacing, alongside output sense (SC) pins for load regulation accuracy — standard features in Vicor’s modular converters.
Applications
Thanks to its high efficiency and rugged design, the V300A24C500BG is suitable for a range of demanding applications:
-
Military and aerospace power systems
-
Industrial automation
-
Rail and transportation
-
Telecom base stations
-
Medical equipment
Whether used standalone or as part of a larger distributed power system, the module ensures minimal energy loss and reliable operation under stress.
Available at VIGOR

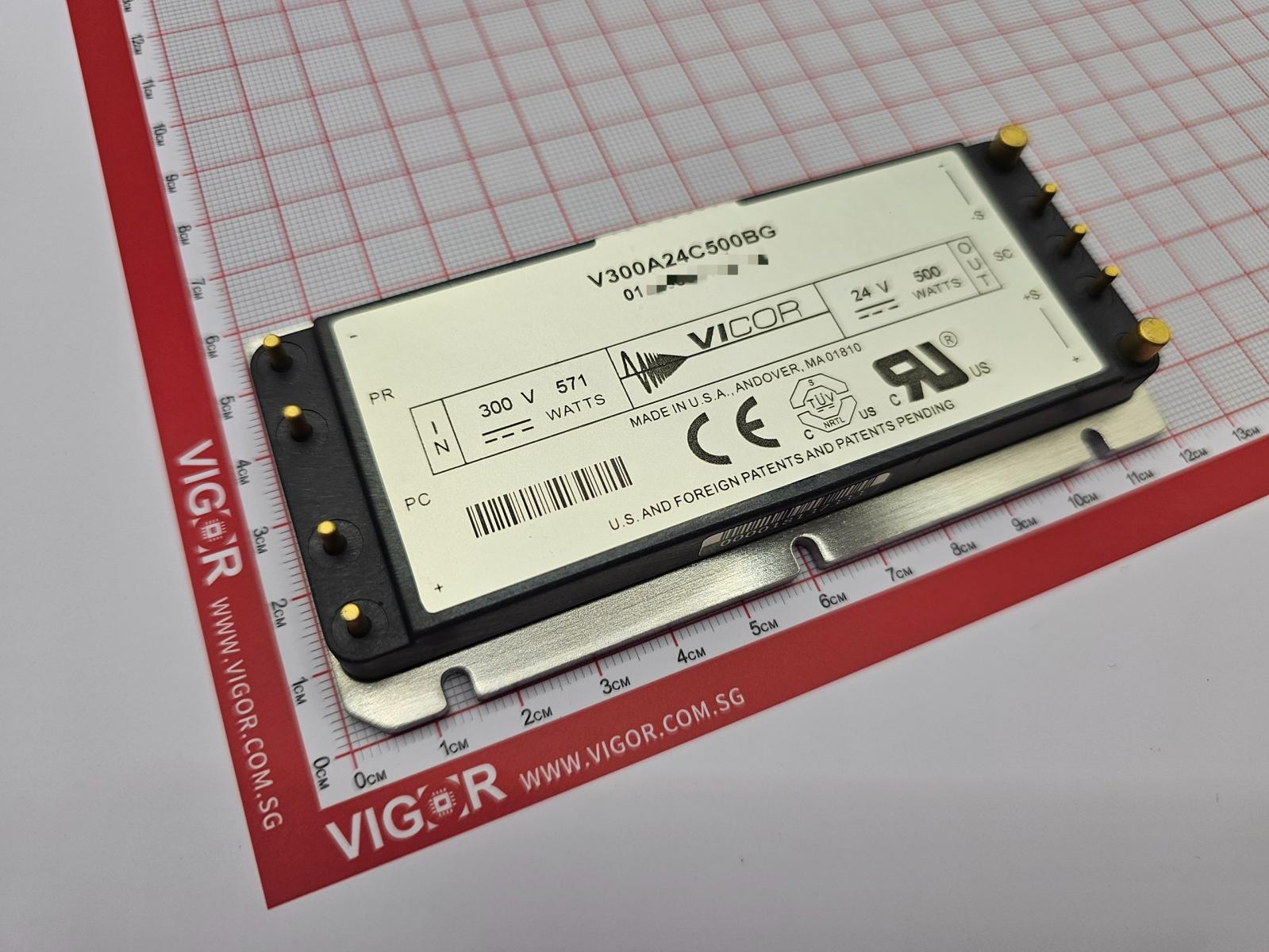

The unit shown in the images is sourced through VIGOR, a trusted electronic components distributor based in Singapore. VIGOR specializes in hard-to-find components and supports industries in sourcing authentic power modules from manufacturers like Vicor.
For more details or to request a quote, visit → VIGOR COMPONENTS.
