RAVF164DJT560R

RAVF164DJT560R

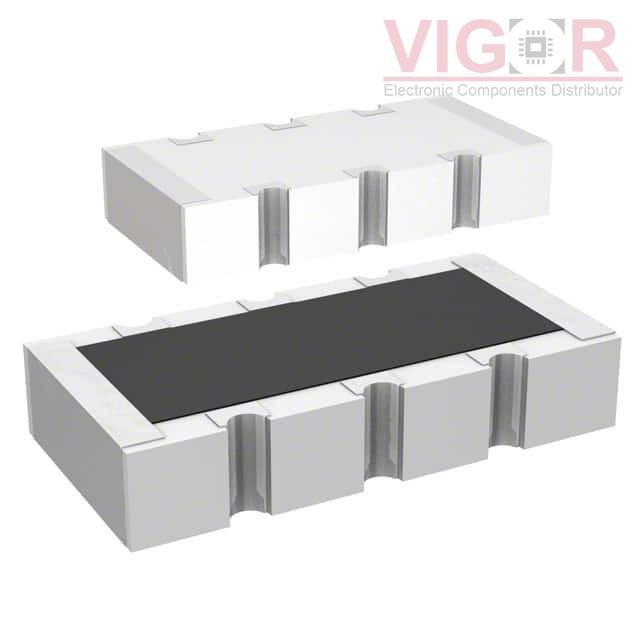

Image is for reference,
please contact us to get the real picture

Part No :

RAVF164DJT560R

Manufacturer
Stackpole Electronics, Inc.
Description
RES ARRAY 4 RES 560 OHM 1206
Catalog
Arrays/Networks Resistors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
RAVF164DJT560R PDF
Availability
0 pieces
Unit Price
$0.00570

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of RAVF164DJT560R is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

RAVF164DJT560R Specifications
Type Description
Series:RAVF
Package:Tape & Reel (TR)
Part Status:Active
Circuit Type:Isolated
Resistance (Ohms):560
Tolerance:±5%
Number of Resistors:4
Resistor Matching Ratio:-
Resistor-Ratio-Drift:-
Number of Pins:8
Power Per Element:62.5mW
Temperature Coefficient:±200ppm/°C
Operating Temperature:-55°C ~ 155°C
Applications:Automotive AEC-Q200
Mounting Type:Surface Mount
Package / Case:1206 (3216 Metric), Convex, Long Side Terminals
Supplier Device Package:-
Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max):0.024" (0.60mm)
