Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ELXY500ELL221MJ25S is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | LXY |
Package: | Bulk |
Part Status: | Active |
Capacitance: | 220 µF |
Tolerance: | ±20% |
Voltage - Rated: | 50 V |
ESR (Equivalent Series Resistance): | - |
Lifetime @ Temp.: | 5000 Hrs @ 105°C |
Operating Temperature: | -55°C ~ 105°C |
Polarization: | Polar |
Ratings: | AEC-Q200 |
Applications: | Automotive |
Ripple Current @ Low Frequency: | 575 mA @ 120 Hz |
Ripple Current @ High Frequency: | 1.15 A @ 100 kHz |
Impedance: | 73 mOhms |
Lead Spacing: | 0.197" (5.00mm) |
Size / Dimension: | 0.394" Dia (10.00mm) |
Height - Seated (Max): | 1.043" (26.50mm) |
Surface Mount Land Size: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Can |

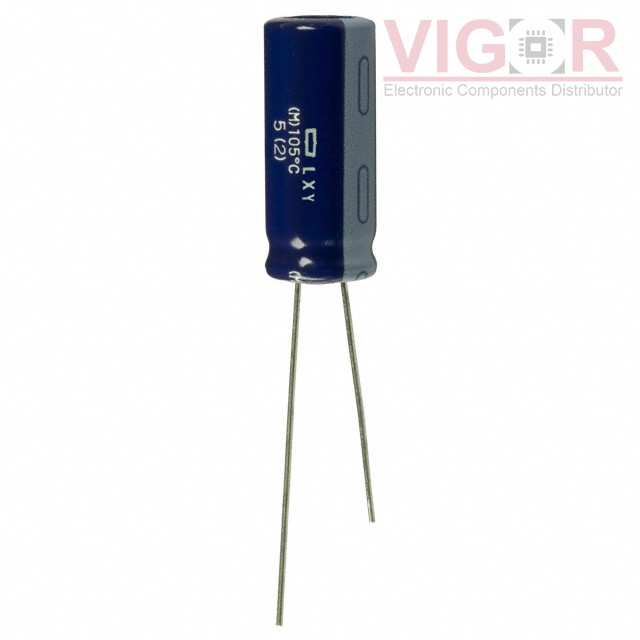

CAP ALUM 220UF 20% 50V RADIAL
