Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of ALC10C102EL400 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | ALC10 |
Package: | Bulk |
Part Status: | Active |
Capacitance: | 1000 µF |
Tolerance: | ±20% |
Voltage - Rated: | 400 V |
ESR (Equivalent Series Resistance): | 120mOhm @ 100Hz |
Lifetime @ Temp.: | 18000 Hrs @ 85°C |
Operating Temperature: | -40°C ~ 85°C |
Polarization: | Polar |
Ratings: | - |
Applications: | General Purpose |
Ripple Current @ Low Frequency: | 5 A @ 100 Hz |
Ripple Current @ High Frequency: | 8.82 A @ 10 kHz |
Impedance: | 78 mOhms |
Lead Spacing: | 0.886" (22.50mm) |
Size / Dimension: | 1.575" Dia (40.00mm) |
Height - Seated (Max): | 3.228" (82.00mm) |
Surface Mount Land Size: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Can - Snap-In - 4 Lead |

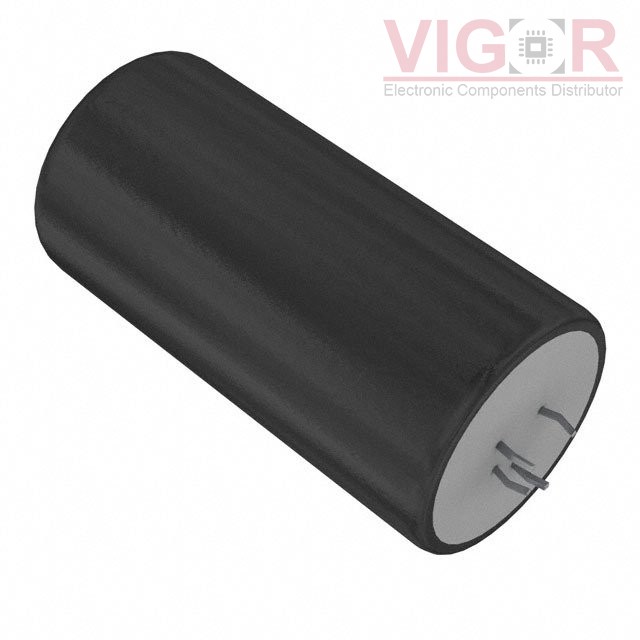

CAP ALUM 1000UF 20% 400V SNAP
