Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of RFS-50V330MH4#5 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | RFS, SILMIC II |
Package: | Bulk |
Part Status: | Active |
Capacitance: | 33 µF |
Tolerance: | ±20% |
Voltage - Rated: | 50 V |
ESR (Equivalent Series Resistance): | - |
Lifetime @ Temp.: | 1000 Hrs @ 85°C |
Operating Temperature: | -40°C ~ 85°C |
Polarization: | Polar |
Ratings: | - |
Applications: | Audio |
Ripple Current @ Low Frequency: | 175 mA @ 120 Hz |
Ripple Current @ High Frequency: | 227.5 mA @ 100 kHz |
Impedance: | - |
Lead Spacing: | 0.197" (5.00mm) |
Size / Dimension: | 0.394" Dia (10.00mm) |
Height - Seated (Max): | 0.689" (17.50mm) |
Surface Mount Land Size: | - |
Mounting Type: | Through Hole |
Package / Case: | Radial, Can |

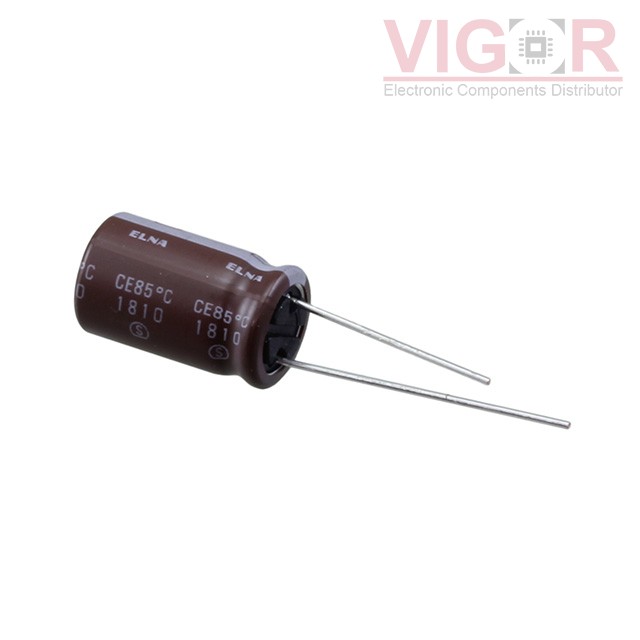

CAP ALUM 33UF 20% 50V T/H
