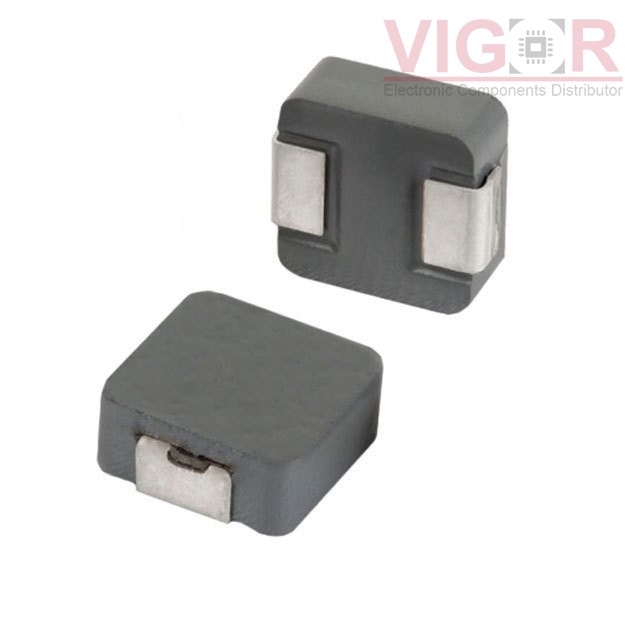

MGV0602R56M-10

MGV0602R56M-10

Image is for reference,
please contact us to get the real picture

Part No :

MGV0602R56M-10

Manufacturer
Laird - Performance Materials
Description
FIXED IND 560NH 11A 9.3MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
MGV0602R56M-10 PDF
Availability
0 pieces
Unit Price
$0.47345

Current price of MGV0602R56M-10 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MGV0602R56M-10 Specifications
Type Description
Series:MGV
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Molded
Material - Core:-
Inductance:560 nH
Tolerance:±20%
Current Rating (Amps):11 A
Current - Saturation (Isat):18A
Shielding:Shielded
DC Resistance (DCR):9.3mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.283" L x 0.264" W (7.20mm x 6.70mm)
Height - Seated (Max):0.094" (2.40mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

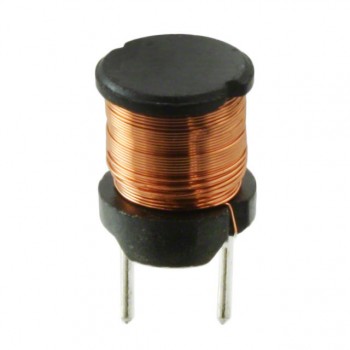

HOT 744772681

744772681

FIXED IND 680UH 350MA 1.4 OHM TH

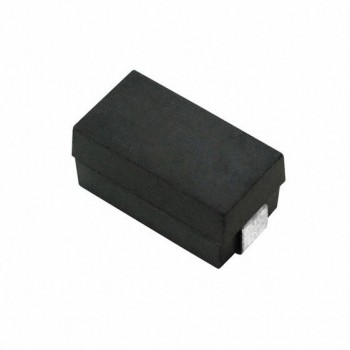

HOT P3519R-272J

P3519R-272J

FIXED IND 2.7UH 1.84A 86 MOHM

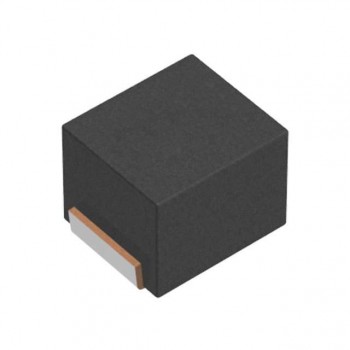

HOT NLCV25T-6R8M-PFRD
