Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of BSCH000603033N3S00 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | BSCH |
Package: | Tape & Reel (TR)Cut Tape (CT) |
Part Status: | Active |
Type: | Multilayer |
Material - Core: | Ceramic |
Inductance: | 3.3 nH |
Tolerance: | ±0.3nH |
Current Rating (Amps): | 320 mA |
Current - Saturation (Isat): | - |
Shielding: | Unshielded |
DC Resistance (DCR): | 230mOhm Max |
Q @ Freq: | 4 @ 100MHz |
Frequency - Self Resonant: | 6.7GHz |
Ratings: | - |
Operating Temperature: | -55°C ~ 125°C |
Inductance Frequency - Test: | 100 MHz |
Features: | - |
Mounting Type: | Surface Mount |
Package / Case: | 0201 (0603 Metric) |
Supplier Device Package: | 0201 |
Size / Dimension: | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
Height - Seated (Max): | 0.013" (0.33mm) |

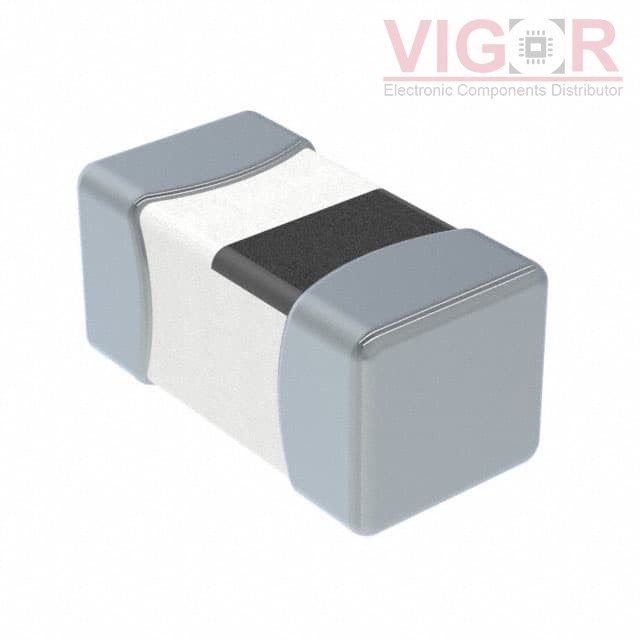

FIXED IND 3.3NH 320MA 230 MOHM
