AWVS00505020220M00

AWVS00505020220M00

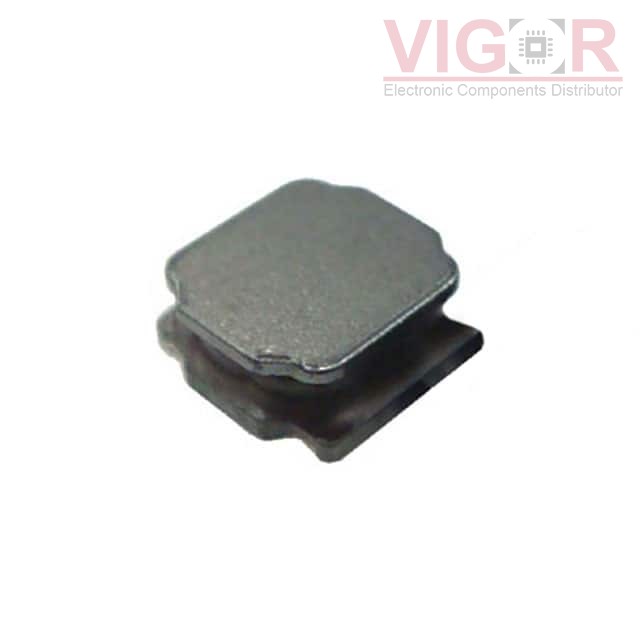

Image is for reference,
please contact us to get the real picture

Part No :

AWVS00505020220M00

Manufacturer
Chilisin Electronics
Description
FIXED IND 22UH 1A 260 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2024
DataSheet
AWVS00505020220M00 PDF
Availability
3885 pieces
Unit Price
$0.55000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of AWVS00505020220M00 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

AWVS00505020220M00 Specifications
Type Description
Series:AWVS
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):1 A
Current - Saturation (Isat):1A
Shielding:Shielded
DC Resistance (DCR):260mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height - Seated (Max):0.087" (2.20mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
