AX97-403R3

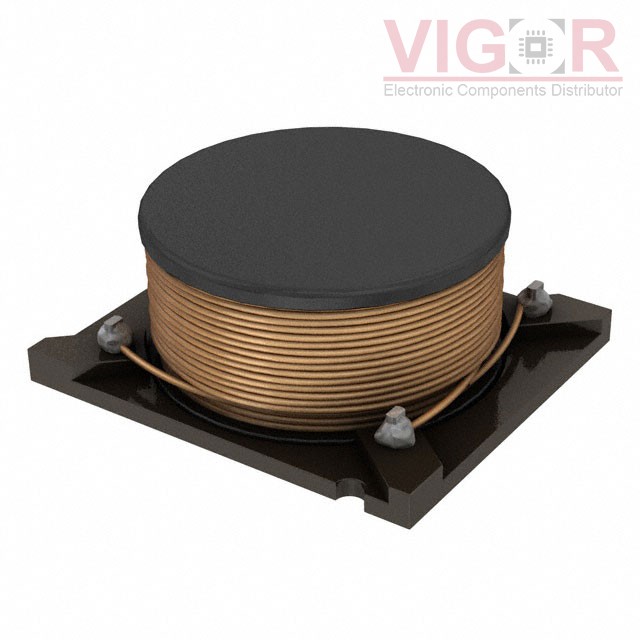

Image is for reference,
please contact us to get the real picture

Part No :: AX97-403R3

Manufacturer: Triad Magnetics

Description: FIXED IND 3.3UH 9.8A 10 MOHM

Catalog: Fixed Inductors

Shipped from: HK warehouse

Expected Shipping Date: Aug 02 - Aug 06 2025

DataSheet: AX97-403R3 PDF

Availability: 0 pieces

Unit Price: ~~$1.34400~~

Current price of AX97-403R3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AX97-403R3 Specifications

Type	Description
Series:	AX97
Package:	Bulk
Part Status:	Active
Type:	Wirewound
Material - Core:	Ferrite
Inductance:	3.3 µH
Tolerance:	±20%
Current Rating (Amps):	9.8 A
Current - Saturation (Isat):	-
Shielding:	Unshielded
DC Resistance (DCR):	10mOhm Max
Q @ Freq:	-
Frequency - Self Resonant:	-
Ratings:	-
Operating Temperature:	-40°C ~ 85°C
Inductance Frequency - Test:	100 kHz
Features:	-
Mounting Type:	Surface Mount
Package / Case:	Nonstandard
Supplier Device Package:	SMD
Size / Dimension:	0.634" L x 0.622" W (16.10mm x 15.80mm)
Height - Seated (Max):	0.284" (7.21mm)
