HCM1A1305-220-R

HCM1A1305-220-R

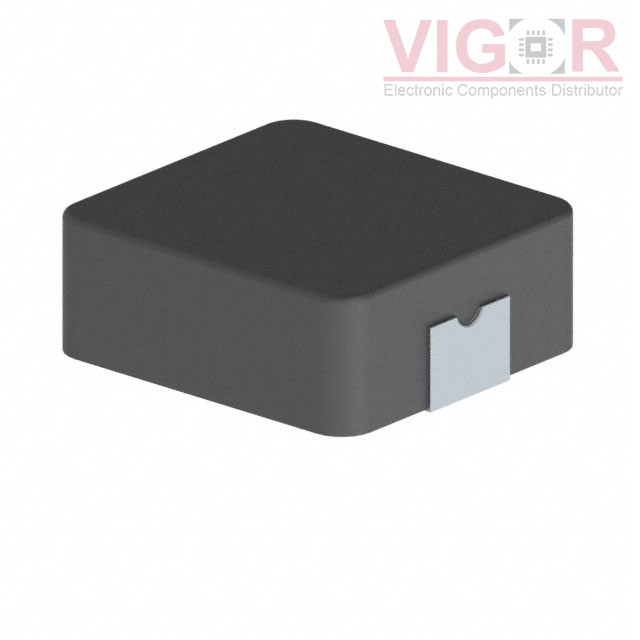

Image is for reference,
please contact us to get the real picture

Part No :

HCM1A1305-220-R

Manufacturer
PowerStor (Eaton)
Description
FIXED IND 22UH 3.5A 51.8MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
HCM1A1305-220-R PDF
Availability
714 pieces
Unit Price
$4.78000

Current price of HCM1A1305-220-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HCM1A1305-220-R Specifications
Type Description
Series:HCM1A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:-
Material - Core:Iron Powder
Inductance:22 µH
Tolerance:±20%
Current Rating (Amps):3.5 A
Current - Saturation (Isat):6.8A
Shielding:Shielded
DC Resistance (DCR):51.8mOhm Max
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:AEC-Q200
Operating Temperature:-55°C ~ 155°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max):0.197" (5.00mm)
