SWS-3.00-77

SWS-3.00-77

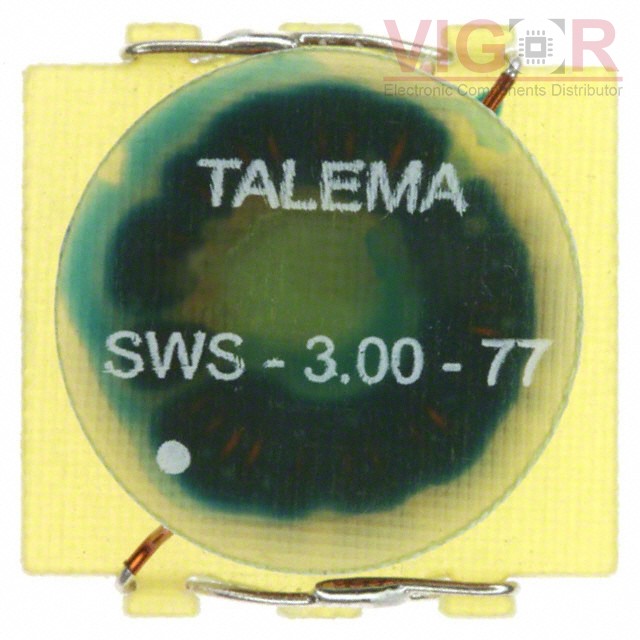

Image is for reference,
please contact us to get the real picture

Part No :

SWS-3.00-77

Manufacturer
Amgis
Description
FIXED IND 77UH 3A 80 MOHM SMD
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
SWS-3.00-77 PDF
Availability
0 pieces
Unit Price
$5.08640

Current price of SWS-3.00-77 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SWS-3.00-77 Specifications
Type Description
Series:SW
Package:Tape & Reel (TR)
Part Status:Active
Type:Toroidal
Material - Core:Iron Powder
Inductance:77 µH
Tolerance:±20%
Current Rating (Amps):3 A
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):80mOhm
Q @ Freq:-
Frequency - Self Resonant:-
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:10 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.925" L x 0.925" W (23.50mm x 23.50mm)
Height - Seated (Max):0.506" (12.85mm)
