0603AF-681XJEW

0603AF-681XJEW

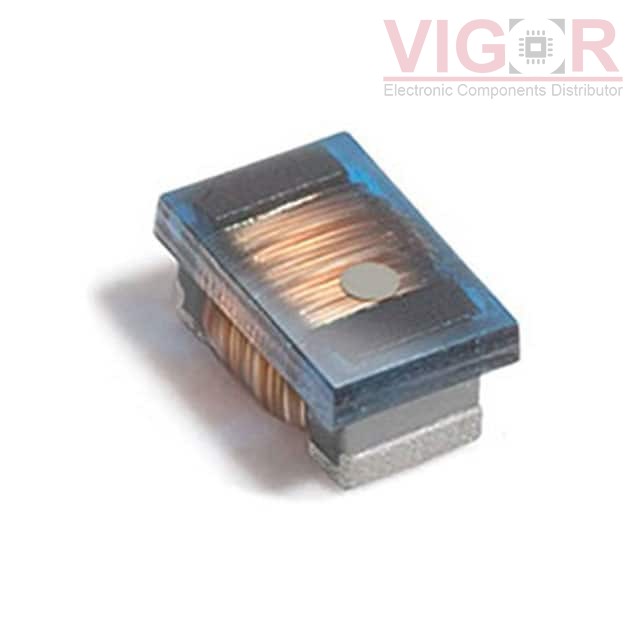

Image is for reference,
please contact us to get the real picture

Part No :

0603AF-681XJEW

Manufacturer
COILCRAFT
Description
WIREWOUND INDUCTOR [email protected]
Catalog
Fixed Inductors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
0603AF-681XJEW PDF
Availability
357 pieces
Unit Price
$1.49000

Current price of 0603AF-681XJEW is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0603AF-681XJEW Specifications
Type Description
Series:0603AF
Package:Tape & Reel (TR)
Part Status:Active
Type:-
Material - Core:Ferrite
Inductance:680 nH
Tolerance:±5%
Current Rating (Amps):490 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):460mOhm Max
Q @ Freq:16 @ 7.9MHz
Frequency - Self Resonant:530MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:7.9 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603
Size / Dimension:0.071" L x 0.044" W (1.80mm x 1.12mm)
Height - Seated (Max):0.036" (0.91mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

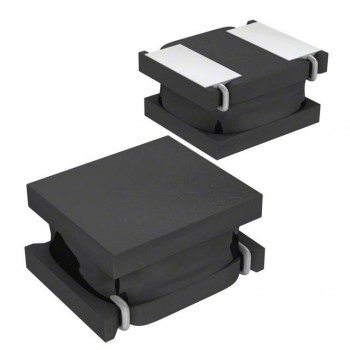

HOT IFSC1008ABER2R2M01

IFSC1008ABER2R2M01

FIXED IND 2.2UH 1.85A 90 MOHM

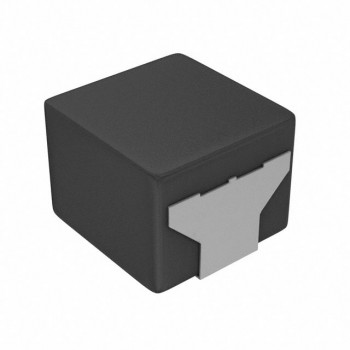

HOT ETQ-P5M330YFM

ETQ-P5M330YFM

FIXED IND 33UH 3.3A 132 MOHM SMD

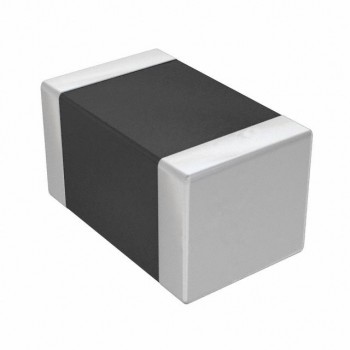

HOT 74479773133
