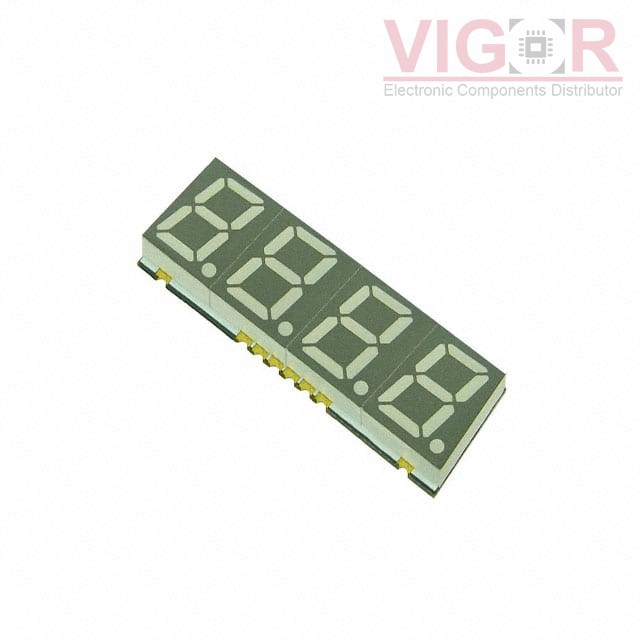

QBQS560AG

QBQS560AG

Image is for reference,
please contact us to get the real picture

Part No :

QBQS560AG

Manufacturer
QT Brightek
Description
DISP 7SEG 0.56" QUAD Y-G 12SMD
Catalog
Display Modules - LED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
QBQS560AG PDF
Availability
15 pieces
Unit Price
$9.44000

Current price of QBQS560AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

QBQS560AG Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Display Format:-
Number of Characters:4
Size / Dimension:0.669" H x 1.969" W x 0.128" D (17.00mm x 50.00mm x 3.25mm)
Digit/Alpha Size:0.56" (14.22mm)
Display Type:7-Segment
Common Pin:Common Anode
Color:Yellow-Green
Voltage - Forward (Vf) (Typ):2V
Current - Test:20mA
Millicandela Rating:10mcd
Wavelength - Peak:570nm
Power Dissipation (Max):70mW
Package / Case:12-SMD, No Lead
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT HDSP-H5E1

HDSP-H5E1

DISPLAY 7SEG 0.52" SGL RED 10DIP

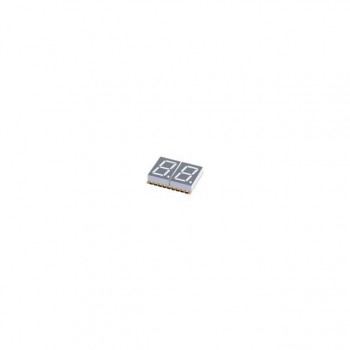

HOT ACDC04-41SURKWA-F01
