C162LLBSBSW6WN55PAB

C162LLBSBSW6WN55PAB

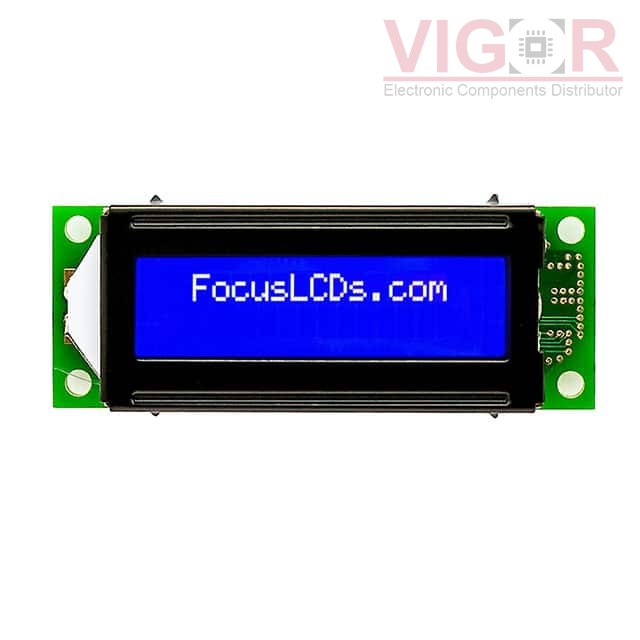

Image is for reference,
please contact us to get the real picture

Part No :

C162LLBSBSW6WN55PAB

Manufacturer
Focus LCDs
Description
16X2 STN BLUE CHARACTER LCD
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
C162LLBSBSW6WN55PAB PDF
Availability
0 pieces
Unit Price
$6.93000

Current price of C162LLBSBSW6WN55PAB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C162LLBSBSW6WN55PAB Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Number of Characters:32
Display Format:16 x 2
Character Format:5 x 7 Dots w/Cursor
Display Type:STN - Super-Twisted Nematic
Display Mode:Transmissive
Character Size:3.23mm H x 1.85mm W
Outline L x W x H:53.00mm x 20.00mm x 8.50mm
Viewing Area:36.00mm L x 10.00mm W
Backlight:LED - White
Voltage - Supply:4.7V ~ 5.5V
Dot Size:0.33mm W x 0.36mm H
Interface:Parallel, 4/8-Bit
Controller Type:SPLC780D
Operating Temperature:-20°C ~ 70°C
Text Color:-
Background Color:Blue
