C202BXBSGN06NR3

C202BXBSGN06NR3

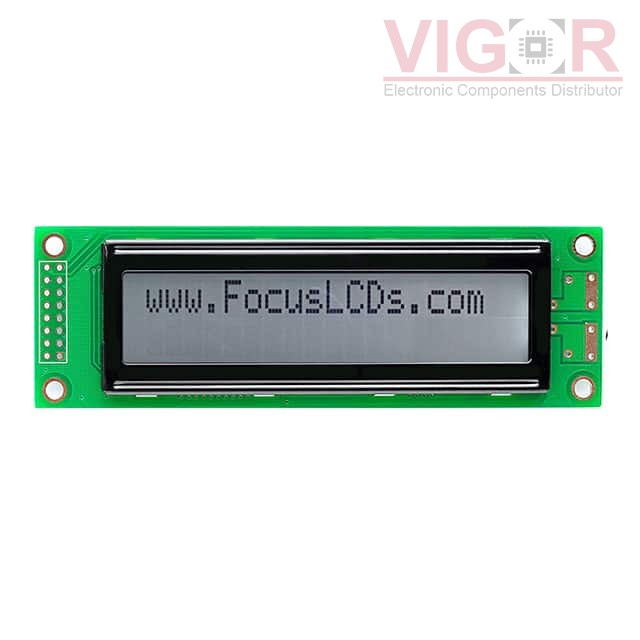

Image is for reference,
please contact us to get the real picture

Part No :

C202BXBSGN06NR3

Manufacturer
Focus LCDs
Description
20X2 STN GRAY CHARACTER LCD
Catalog
Display Modules - LCD, OLED Character and Numeric
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
C202BXBSGN06NR3 PDF
Availability
1 pieces
Unit Price
$14.19000

Current price of C202BXBSGN06NR3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C202BXBSGN06NR3 Specifications
Type Description
Series:-
Package:Box
Part Status:Active
Number of Characters:40
Display Format:20 x 2
Character Format:5 x 8 Dots w/Cursor
Display Type:STN - Super-Twisted Nematic
Display Mode:Reflective
Character Size:5.55mm H x 3.20mm W
Outline L x W x H:116.00mm x 37.00mm x 13.50mm
Viewing Area:83.00mm L x 18.60mm W
Backlight:Without Backlight
Voltage - Supply:4.7V ~ 5.5V
Dot Size:0.65mm W x 0.60mm H
Interface:Parallel, 4/8-Bit
Controller Type:ST7066U-0B
Operating Temperature:-20°C ~ 70°C
Text Color:-
Background Color:Gray
