Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of L2C2-30901204E1300 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

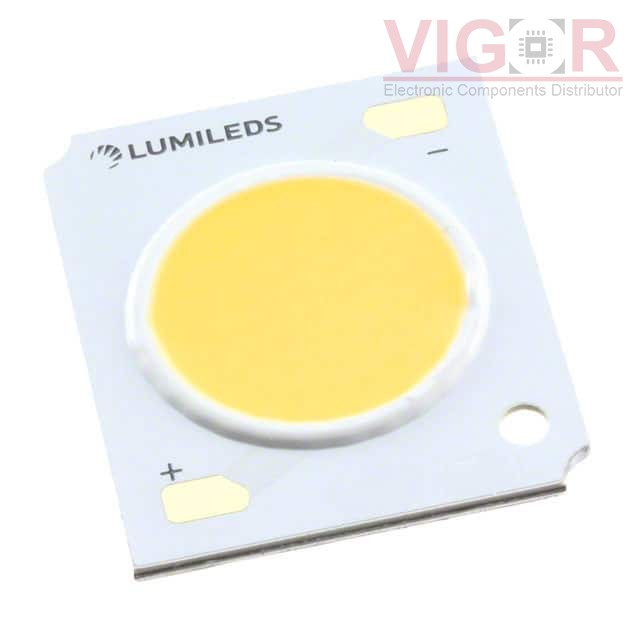

Type | Description |
---|---|
Series: | LUXEON CoB Core Range |
Package: | Tube |
Part Status: | Obsolete |
Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 3000K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Rectangle |
Luminous Flux @ Current/Temperature: | 1742lm (Typ) |
Current - Test: | 450mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 35V |
Lumens/Watt @ Current - Test: | 111 lm/W |
Current - Max: | 900mA |
CRI (Color Rendering Index): | 90 |
Viewing Angle: | 115° |
Features: | - |
Size / Dimension: | 20.00mm L x 24.00mm W |
Height: | 1.50mm |
Light Emitting Surface (LES): | 13.00mm Dia |
Lens Type: | Flat |
