Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of CXM-14-27-80-36-AA30-F4-3 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | CXM-14 Gen3 |
Package: | Tray |
Part Status: | Active |

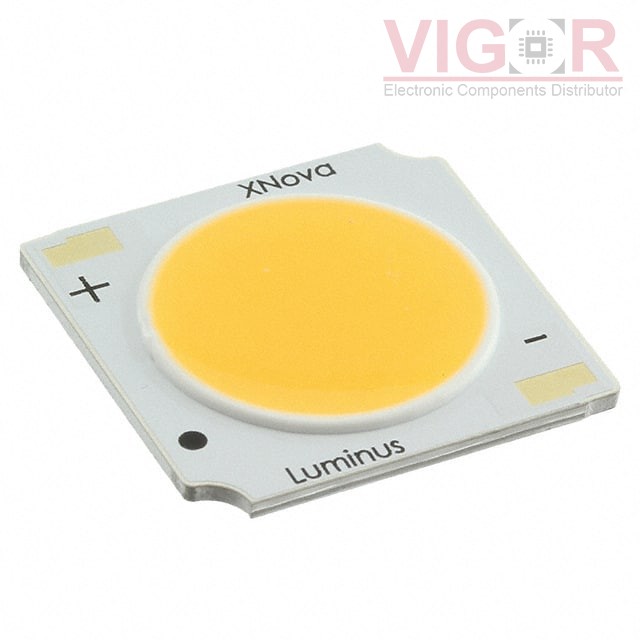

Type: | Chip On Board (COB) |
Color: | White, Warm |
CCT (K): | 2700K 3-Step MacAdam Ellipse |
Wavelength: | - |
Configuration: | Square |
Luminous Flux @ Current/Temperature: | 3410lm (Typ) |
Current - Test: | 720mA |
Temperature - Test: | 85°C |
Voltage - Forward (Vf) (Typ): | 34V |
Lumens/Watt @ Current - Test: | 139 lm/W |
Current - Max: | 1.45A |
CRI (Color Rendering Index): | 80 |
Viewing Angle: | 120° |
Features: | - |
Size / Dimension: | 18.50mm L x 18.50mm W |
Height: | 1.37mm |
Light Emitting Surface (LES): | 14.30mm Dia |
Lens Type: | Flat |
