ESD249B1W0201E6327XTSA1

ESD249B1W0201E6327XTSA1

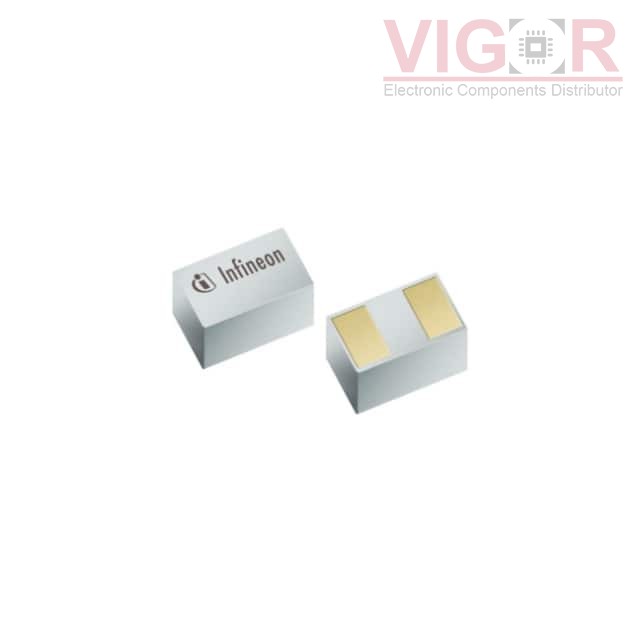

Image is for reference,
please contact us to get the real picture

Part No :

ESD249B1W0201E6327XTSA1

Manufacturer
IR (Infineon Technologies)
Description
TVS DIODE 18V 23V WLL-2-3
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
ESD249B1W0201E6327XTSA1 PDF
Availability
9318 pieces
Unit Price
$0.33000

Current price of ESD249B1W0201E6327XTSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD249B1W0201E6327XTSA1 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):18V
Voltage - Breakdown (Min):-
Voltage - Clamping (Max) @ Ipp:23V
Current - Peak Pulse (10/1000µs):3A (8/20µs)
Power - Peak Pulse:72W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:4.2pF @ 1GHz
Operating Temperature:-55°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:0201 (0603 Metric)
Supplier Device Package:WLL-2-3
