ESD401DPYR

ESD401DPYR

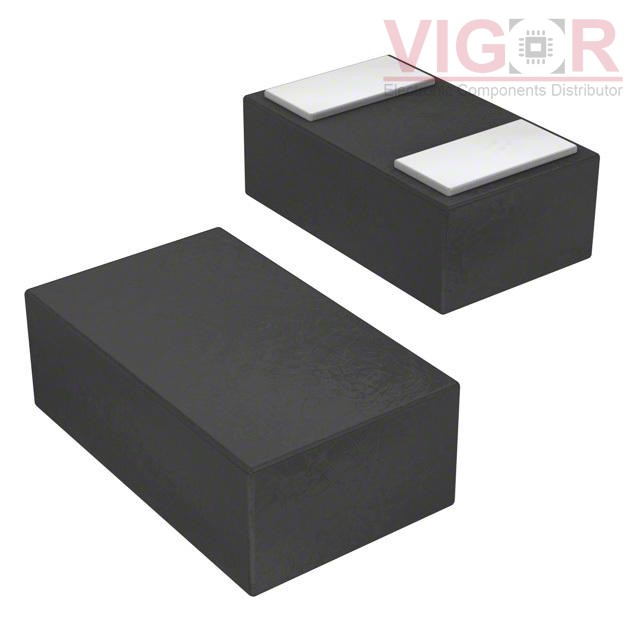

Image is for reference,
please contact us to get the real picture

Part No :

ESD401DPYR

Manufacturer
Texas Instruments
Description
TVS DIODE 5.5V 24V 2X1SON
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
ESD401DPYR PDF
Availability
0 pieces
Unit Price
$0.54000

Current price of ESD401DPYR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD401DPYR Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:-
Bidirectional Channels:1
Voltage - Reverse Standoff (Typ):5.5V (Max)
Voltage - Breakdown (Min):7.5V
Voltage - Clamping (Max) @ Ipp:24V (Typ)
Current - Peak Pulse (10/1000µs):4.5A (8/20µs)
Power - Peak Pulse:67W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:-
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:0402 (1006 Metric)
Supplier Device Package:2-X1SON (1x.60)
