ESD12VD7-TP

ESD12VD7-TP

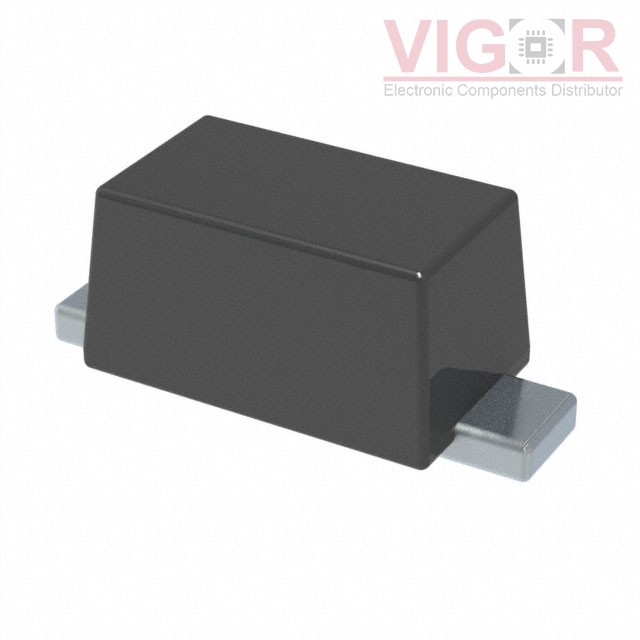

Image is for reference,
please contact us to get the real picture

Part No :

ESD12VD7-TP

Manufacturer
Micro Commercial Components (MCC)
Description
TVS DIODE 12V 23.7V SOD723
Catalog
TVS - Diodes
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
ESD12VD7-TP PDF
Availability
0 pieces
Unit Price
$0.45000

Current price of ESD12VD7-TP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ESD12VD7-TP Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Type:Zener
Unidirectional Channels:1
Bidirectional Channels:-
Voltage - Reverse Standoff (Typ):12V (Max)
Voltage - Breakdown (Min):13.5V
Voltage - Clamping (Max) @ Ipp:23.7V
Current - Peak Pulse (10/1000µs):5.4A (8/20µs)
Power - Peak Pulse:128W
Power Line Protection:No
Applications:General Purpose
Capacitance @ Frequency:30pF @ 1MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SOD-723
Supplier Device Package:SOD-723
