Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PT-3110WQ is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

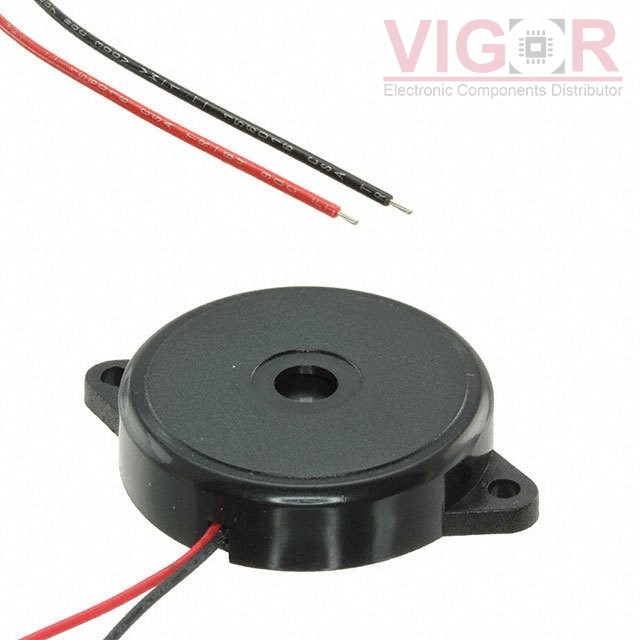

Type | Description |
---|---|
Series: | PT |
Package: | Bulk |
Part Status: | Active |
Driver Circuitry: | Transducer, Externally Driven |
Input Type: | Peak-Peak Signal |
Voltage - Rated: | 5 V |
Voltage Range: | 3 ~ 30V |
Frequency: | 1.1kHz |
Technology: | Piezo |
Operating Mode: | Single Tone |
Duration: | - |
Sound Pressure Level (SPL): | 85dB @ 5V, 10cm |
Current - Supply: | 2mA |
Port Location: | Top |
Operating Temperature: | -20°C ~ 90°C |
Approval Agency: | - |
Ratings: | - |
Ingress Protection: | - |
Mounting Type: | Panel Mount, Flange |
Termination: | Wire Leads |
Size / Dimension: | 1.358" Dia (34.50mm) |
Height - Seated (Max): | 0.362" (9.20mm) |
