TTC-13

TTC-13

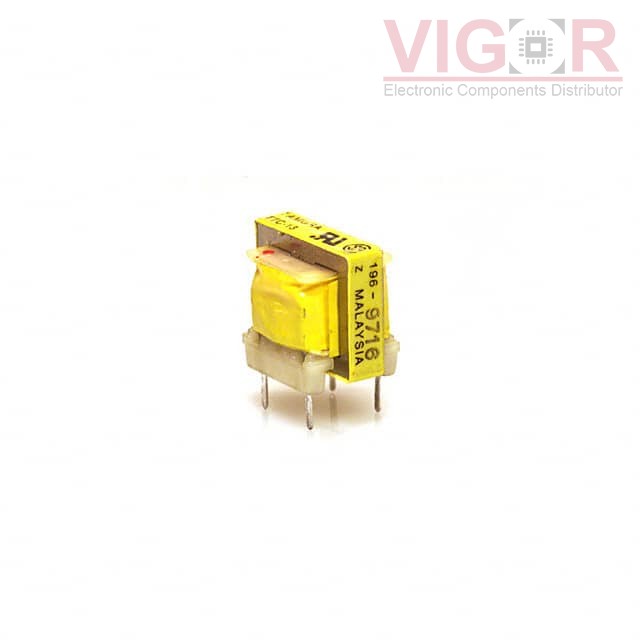

Image is for reference,
please contact us to get the real picture

Part No :

TTC-13

Manufacturer
Tamura
Description
TRANSF TELE COUP 4000:600 0 MADC
Catalog
Audio Transformers
Shipped from
HK warehouse
Expected Shipping Date
May 05 - May 09 2024
DataSheet
TTC-13 PDF
Availability
0 pieces
Unit Price
$3.01500

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TTC-13 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

TTC-13 Specifications
Type Description
Series:TTC
Package:Bulk
Part Status:Active
Turns Ratio - Primary:Secondary:1:0.397
Impedance - Primary (Ohms):4k
Impedance - Secondary (Ohms):600
DC Resistance (DCR) - Primary:225Ohm
DC Resistance (DCR) - Secondary:45Ohm
Transformer Type:Data/Voice Coupling
Frequency Range:300Hz ~ 3.5kHz
Frequency Response:±0.5dB
Voltage - Isolation:1500VRMS @ 1 Minute
Insertion Loss:1.2dB Max @ 1kHz
Return Loss:-
Power Level:-45dB ~ 7dB
Operating Temperature:-
Approval Agency:CSA-C22.2 No. 66-M1988, UL1459
Mounting Type:Through Hole
Size / Dimension:0.799" L x 0.650" W (20.30mm x 16.50mm)
Height - Seated (Max):0.736" (18.70mm)
Termination Style:PC Pin
