AH30012

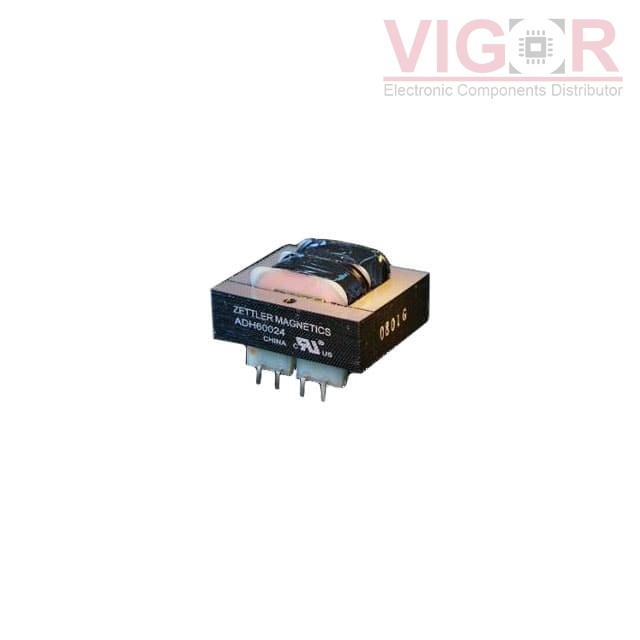

Image is for reference,
please contact us to get the real picture

Part No :

AH30012

Manufacturer
Zettler Magnetics
Description
PWR XFMR LAMINATED 2.4VA TH
Catalog
Power Transformers
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
AH30012 PDF
Availability
29 pieces
Unit Price
$2.95000

Current price of AH30012 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:AH300
Package:Box
Part Status:Active
Type:Laminated Core
Voltage - Primary:115V
Voltage - Secondary (Full Load):Parallel 6.3V, Series 12.6V
Current - Output (Max):Parallel 1A, Series 500mA
Primary Winding(s):Single
Secondary Winding(s):Dual, Multiple Taps
Center Tap:No
Power - Max:2.4VA
Mounting Type:Through Hole
Termination Style:PC Pin
Size / Dimension:35.2mm L x 29.8mm W
Height - Seated (Max):30.20mm
Voltage - Isolation:2500V
Weight:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

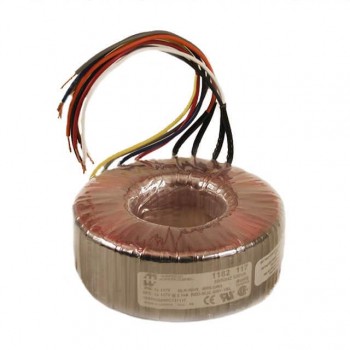

HOT 1182S24

1182S24

PWR XFMR TORO 500VA CHAS MT

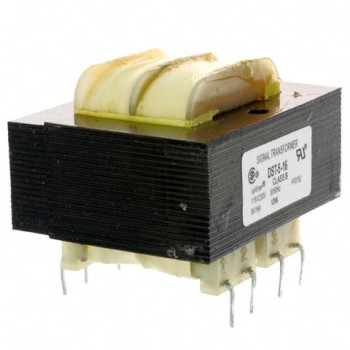

HOT ST-5-120

ST-5-120

PWR XFMR LAMINATED 12VA TH

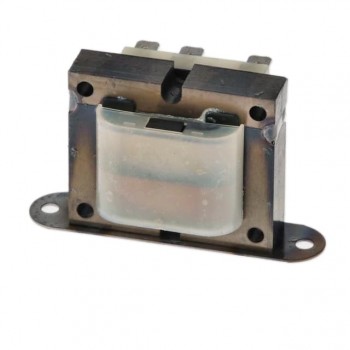

HOT 4000-09A19BB999
